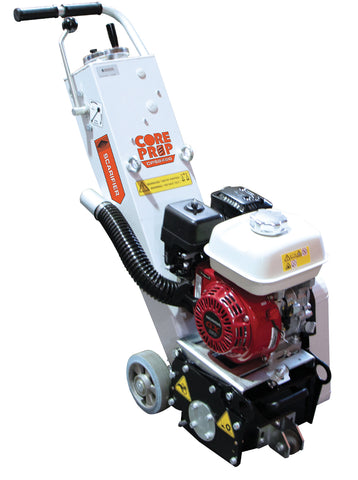

Diamond Products CORE PREP Scarifiers CPS848G 4.8HP Honda Gas 8" - Part # 5802002, Cat # 112187
These scarifiers perform surface texturing, planing, grooving, and removal of road markings. Units are available with gas or electric power options to accommodate various site requirements.
- Milling Width8 to 13-1/4in
- Power3 to 35HP
01Features & Build
-
FEATURES
- Available in gas or electric configurations
- Manual hand wheel for height adjustment
- Integrated quick lift lever
- Designed for maneuverability
- Toothed belt drive with tensioner
- Equipped with vacuum connection port
02Specifications5
| Brand | Diamond Products |
|---|---|
| Part Number | 5802002 |
| Catalog Number | 112187 |
| Power | 4.8HP Honda Gas |
| Milling Width | 8" |
| CPS83E1 and CPS848G SPECIFICATIONS | ||
|---|---|---|
| Model | CPS83E1 Electric (Push) | CPS848G Gas (Self-Propelled |
| Power | 230V / 60Hz / 1PH / 3HP | 4.8 HP |
| Milling Width | 8" | 8" |
| Tool Speed | 1750 RPM | 1917 RPM |
| Vacuum Connection | 2" | 2" |
| Application | Dry/wet | Dry/wet |
| Length | 39.3" | 39.3" |
| Width | 14.56" | 14.56" |
| Height | 39.3" | 39.3" |
| Weight | 134 lbs. | 134 lbs. |
| CPS1320E3 and CPS1335G SPECIFICATIONS | |||
|---|---|---|---|

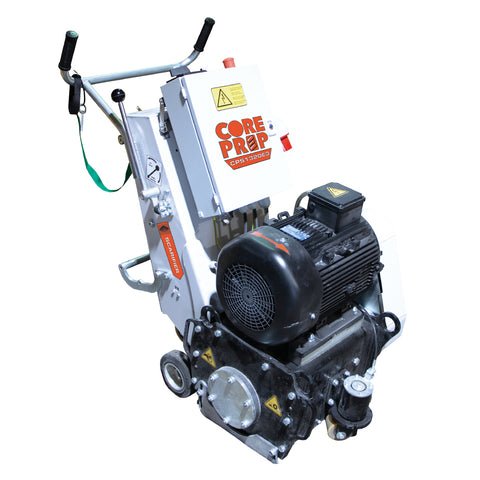

| Model | CPS1320E3 Electric (Self-Propelled) | CPS1335G Gas (Self-Propelled) | CPS1325LCE3 Electric Low Chassis (Self-Propelled) |
| Power | 460V / 60Hz / 3PH / 20 HP | 35 HP | 460V / 60Hz / 3PH / 25HP |
| Milling Width | 12-1/2" w/diamond, 13-1/2" w/drum | 12-1/2" w/diamond, 13-1/2" w/drum | 12-1/2" |
| Vacuum Connection | 2-3/4" | 2-3/4" | 2-3/4" |
| Application | Dry | Dry | Dry |
| Length | 46-1/2" | 46-1/2" | 46-1/2" |
| Width | 25" | 26" | 25" |
| Height | 38-1/2" | 43-1/4" | 38-1/2" |
| Weight | 652 lbs. | 588 lbs. | 652 lbs. |
Specifications are supplied by the manufacturer and are subject to change without notice.
