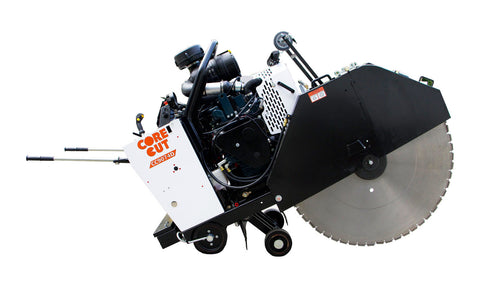

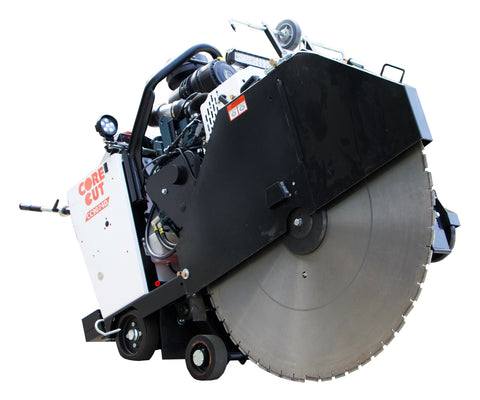

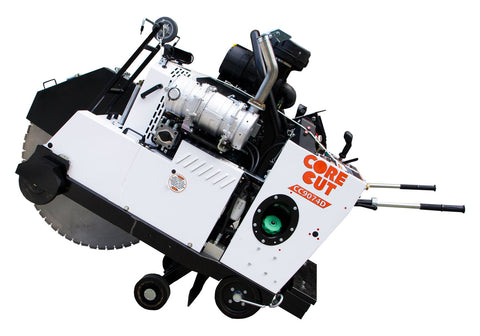

Diamond Products CC9074DK Deep Cut Saw 36” - Part # 5801480, Cat # 108496
This walk-behind saw is designed for deep-cut concrete applications. It features a 60-inch blade capacity and is powered by a diesel engine.
- Blade Capacity60in
01Features & Build
-
Diesel Powered
-
Made in the U.S.A.
-
Features & Benefits
- Tier 4 Final Kubota diesel engine

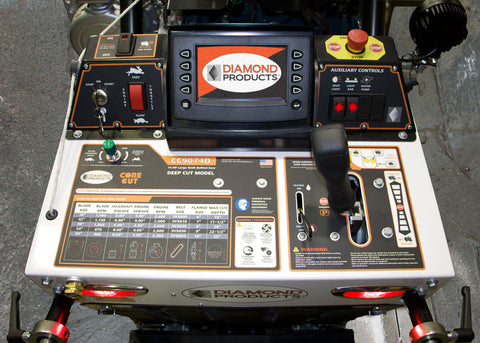

- 7" digital display with engine service alerts and maintenance reminders
- Front view camera for monitoring sawing location and obstructions
- LED spot and bar lights for night operation
- Auto Water System (AWS) controls water flow based on blade position
- Undercarriage slurry flap reduces buildup on rear axle components
- Weight distribution optimized for performance
- Blade guard stabilizer with quick-disconnect ball joints
- 5th wheel lift system raises rear wheels at maximum height for saw swivel
- Hydraulically driven enclosed rear wheel motors with center swivel tracking adjustment
- Dash-mounted switch for freewheeling activation
- Blade shaft supported by three pillow block spherical roller bearings
- Jackshaft drive provides low-speed, high-torque power delivery
- Air cleaner system with radial seal filters and spinner-style pre-cleaner
- Heavy-duty aluminum radiator core
- Sealed electronics resistant to heat, moisture, shock, and vibration
- Single-piece frame with bar and tubular reinforcement
02Specifications6
| Brand | Diamond Products |
|---|---|
| Model | CC9074DK |
| Part Number | 5801480 |
| Catalog Number | 108496 |
| Blade Capacity | 36” |
| Engine/Motor Make | Kubota® |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Related Products4
- 5801481CC9074DK Deep Cut Saw 42” - Part # 5801481, Cat # 107713
- 5801482CC9074DK Deep Cut Saw 48” - Part # 5801482, Cat # 107773
- 5801483CC9074DK Deep Cut Saw 54” - Part # 5801483, Cat # 106444
- 5801484CC9074DK Deep Cut Saw 60” - Part # 5801484, Cat # 106516
Other configurations and accessories published for this product.
