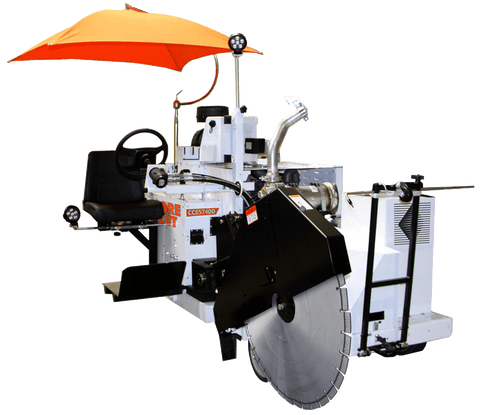

This diesel-powered rider saw performs deep concrete cutting operations with a blade capacity ranging from 14 to 60 inches. It features a programmable depth stop and a 7-inch digital interface for monitoring engine and hydraulic performance.
- Blade Capacity14 to 60in
01Features & Build
-
Diesel Power
-
Made in the U.S.A.
-
Operational Design
- Reinforced frame construction for increased rigidity
- Engine-mounted fan powers both engine and hydraulic cooling systems
- Rear-mounted coolers minimize debris fouling
- Reservoir includes dedicated clean-out access
- Blade speed is infinitely variable
- Integrated programmable depth stop
- Rear drive motor features higher load capacity, increased top speed, and an integral parking brake
- Steering actuator enhances operator control
- Wheel drive includes a positive neutral lock
- Large diameter wheels improve traction
- Capable of self-trailing on inclines up to 12 degrees
- Hydraulic components supplied by Sauer-Danfoss, Parker, and Poclain
-

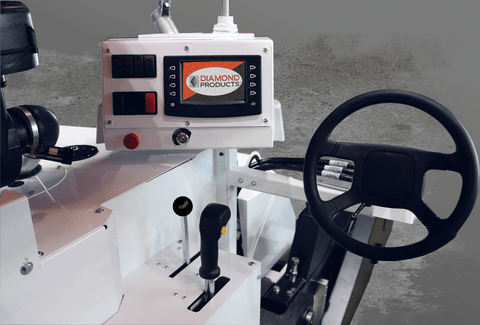

Digital Interface
- Displays engine and blade speed
- Monitors engine and hydraulic fluid temperatures
- Provides fuel level status
- Includes warnings for low hydraulic levels and blade over-speed
02Specifications26
| Brand | Diamond Products |
|---|---|
| Model | CC8574DD |
| Part Number | 5803300 |
| Catalog Number | 78895 |
| Blade Capacity | 14” |
| Power Source | Diesel |
| Max Depth of Cut w/ 14" Blade | 3-3/4" |
| Max Depth of Cut w/ 20" Blade | 6-3/4" |
| Max Depth of Cut w/ 26" Blade | 9-3/4" |
| Max Depth of Cut w/ 30" Blade | 11-3/4" |
| Max Depth of Cut w/ 36" Blade | 14-3/4" |
| Max Depth of Cut w/ 42" Blade | 16-3/4" |
| Max Depth of Cut w/ 48" Blade | 19-3/4" |
| Max Depth of Cut w/ 54" Blade | 22-3/4" |
| Max Depth of Cut w/ 60" Blade | 23-3/4" |
| Engine Model | Deutz 2.9 Turbo L4 Tier 4 Final |
| Blade Shaft Diameter | 2-1/2" |
| Arbor Size | 1" w/single drive pin |
| Blade Shaft Bearings | Precision ball |
| Blade Shaft Drive | Hydraulic motor |
| Blade Mounting | Right side |
| Blade Raise/Lower | Hydraulic, solenoid valve controlled |
| Transmission | Variable displacement hydraulic pump & motor |
| Air Filter | 8" Donaldson Alexin |
| Fuel Capacity | 9.5 gallons |
| Includes | Hour Meter, Tachometer, Telescoping Front Pointer, Adjustable Depth Stop, Cup Holder, Quick Disconnect Blade Flanges |
Specifications are supplied by the manufacturer and are subject to change without notice.
