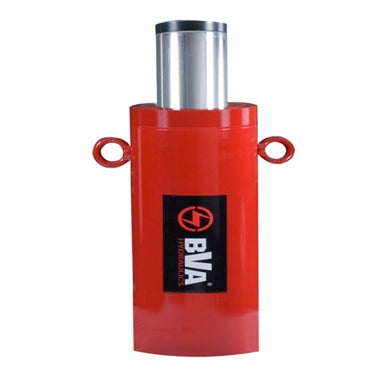

BVA | HD15002, 150 Ton 2" Stroke, Double Acting Cylinder
GENERAL PURPOSE DOUBLE ACTING CYLINDER
BVA Hydraulics
Model: HD15002
Features:
- Rod wiper seals out dirt & contamination
- High strength steel construction from gun drilled solid bar
- High flow 3/8” NPTF couplers
- One piece high grade alloy bearing for side load protection and long life
- Ideal for pushing and pulling
- Maximum working pressure: 10,000 psi / 700 bar
| Cylinder Capacity (tons) |
Stroke (in) |
Model Number |
Collapsed Height |
Oil Capacity (in³) Push |
Oil Capacity (in³) Pull |
Weight (Lbs) |
| 150 |
2.25 |
HD15002 | 7.72 |
68.40 |
32.20 |
114 |
Documents:
General Purpose Double Acting Cylinders Spec Sheet
Parts/Owner's Manual (10 thru 100 ton)
Parts/Owner's Manual (150 ton)
Parts/Owner's Manual (200 & 300 ton)
