Sprague | SM-3S-005-H Mini Air-Driven Hand Pump, 5:1 ratio, SS Fluid End

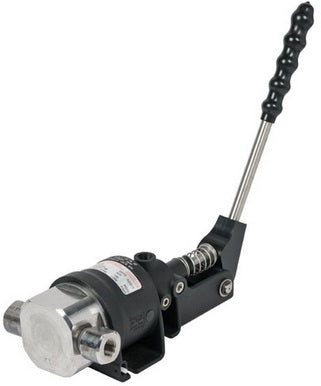

Teledyne Sprague, Mini Air-Driven Hand Pump

Model SM-3S-005-H

Pump Ratio: 5:1

Fluid End: Stainless Steel

Features

Easier and Lower Cost Maintenance
Pump can be supplied to suit oil applications or more demanding water based systems.
Various air valve operating modes are supplied as standard and can be readily field configured.
Manual operation option available so pump can be used as a back up to main pump or in low volume lab applications.

Technical Specifications:

Pump Model No.

Nominal Output Pressure

psi (bar)

Disp. Per Stroke Cu.In.

Port Threads

Driving Air, Fluid Inlet, Fluid Outlet

Actual Weight

lbs (kg)

SM-3S-005-H

500

(34.5)

1.050

1/4" NPT , 3/8" NPT, 3/8" NPT

6.75 (3)
