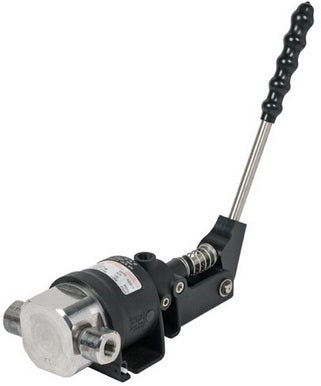

Sprague | SM-3A-035-H Mini Air-Driven Hand Pump, 35:1 ratio, Alum Fluid End

Sprague | SM-3A-035-H Mini Air-Driven Hand Pump, 35:1 ratio, Alum Fluid End

Teledyne Sprague, Mini Air-Driven Hand Pump

Model SM-3A-035-H

Pump Ratio: 35:1

Fluid End: Aluminum

Features
  • Easier and Lower Cost Maintenance
  • Anodized aluminum bodies are for oil and non-corrosive applications.
  • Various air valve operating modes are supplied as standard and can be readily field configured.
  • Manual operation.

Technical Specifications:

 Pump Model No.

Nominal Output Pressure

psi (bar)

Disp. Per Stroke Cu.In.

 Port Threads

Driving Air, Fluid Inlet, Fluid Outlet

Actual Weight

lbs (kg)
 SM-3A-035-H

3500

(241)

0.150

1/4" NPT , 3/8" NPT, 3/8" NPT

  4.75 (2)
