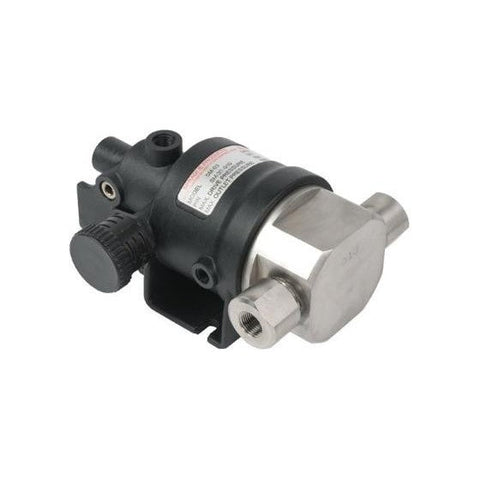

Sprague | SM-3A-020 Mini Air-Driven Pump, 20:1 ratio, Aluminum Fluid End

Sprague | SM-3A-020 Mini Air-Driven Pump, 20:1 ratio, Aluminum Fluid End

Teledyne Sprague, Mini Air-Driven Pump

Model SM-3A-020

Pump Ratio: 20:1

Fluid End: Aluminum

Features
  • Easier and Lower Cost Maintenance
  • Anodized aluminum bodies are for oil and non-corrosive applications.
  • Various air valve operating modes are supplied as standard and can be readily field configured.
  • Manual operation option available so pump can be used as a back up to main pump or in low volume lab applications.

Technical Specifications:

 Pump Model No.

Nominal Output Pressure

psi (bar)

Disp. Per Stroke Cu.In.

 Port Threads

Driving Air, Fluid Inlet, Fluid Outlet

Actual Weight

lbs (kg)
 SM-3A-020

2000

(137)

0.263

1/4" NPT , 3/8" NPT, 3/8" NPT

  4.5 (2)
