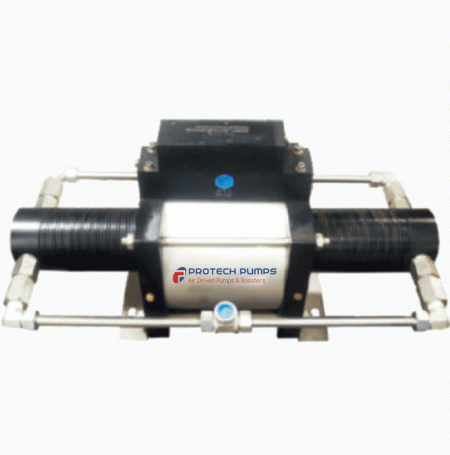

PROTECH PUMPS | PT60 Air-Driven Liquid Pump 8,294 psi

PROTECH PUMPS Air-Driven Liquid Pump, 250mm Double Acting, Single Air Drive

PROTECH PUMP Model: PT60

Key Specifications:

• Nominal ratio: 60:1
• Actual Pressure ratio: 69:1
• Displacement per cycle: 12.07 cu in / 197.92 cc
• Max outlet pressure: 8,294 psi / 572 BARG
• Connection size inlet/outlet: 3/4" NPT / 1/2" NPT
• Availability: Normally stocked

Features:

• Stainless steel wet end materials of construction
• Specialized construction materials available
• Polyurethane pressure seals as standard
• UHMWPE, PTFE & other special seals available
• Separation & drainage between hydraulic & pneumatic seals
• No airline lubrication required
• Compact and lightweight
• Suitable for most hazardous areas
