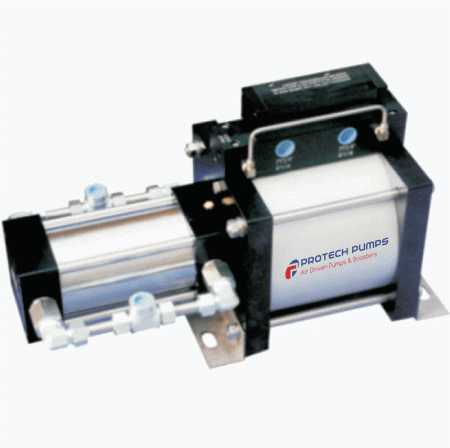

PROTECH PUMPS | PH35 Air-Driven Liquid Pump 4,814 psi

PROTECH PUMPS Air-Driven Liquid Pump, 250mm Double Acting, Single Air Drive

PROTECH PUMP Model: PH35

Key Specifications:

• Nominal ratio: 35:1
• Actual Pressure ratio: 40:1
• Displacement per cycle: 14.5 cu in / 188.5 cc
• Max outlet pressure: 4,814 psi / 332 BARG
• Connection size inlet/outlet: 3/4" NPT / 3/4" NPT
• Availability: Normally stocked

Features:

• Stainless steel wet end materials of construction
• Specialized construction materials available
• Polyurethane pressure seals as standard
• UHMWPE, PTFE & other special seals available
• Separation & drainage between hydraulic & pneumatic seals
• No airline lubrication required
• Compact and lightweight
• Suitable for most hazardous areas
