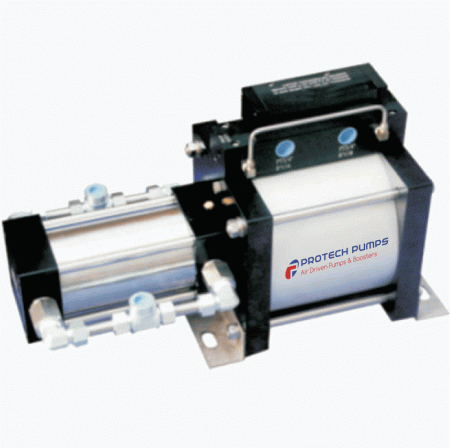

PROTECH PUMPS | PH22 Air-Driven Liquid Pump 3,001 psi

PROTECH PUMPS Air-Driven Liquid Pump, 250mm Double Acting, Single Air Drive

PROTECH PUMP Model: PH22

Key Specifications:

• Nominal ratio: 22:1
• Actual Pressure ratio: 25:1
• Displacement per cycle: 17.97 cu in / 294.52 cc
• Max outlet pressure: 3,001 psi / 207 BARG
• Connection size inlet/outlet: 3/4" NPT / 3/4" NPT
• Availability: Normally stocked

Features:

• Stainless steel wet end materials of construction
• Specialized construction materials available
• Polyurethane pressure seals as standard
• UHMWPE, PTFE & other special seals available
• Separation & drainage between hydraulic & pneumatic seals
• No airline lubrication required
• Compact and lightweight
• Suitable for most hazardous areas
