PROTECH PUMPS | PH180 Air-Driven Liquid Pump 22,866 psi

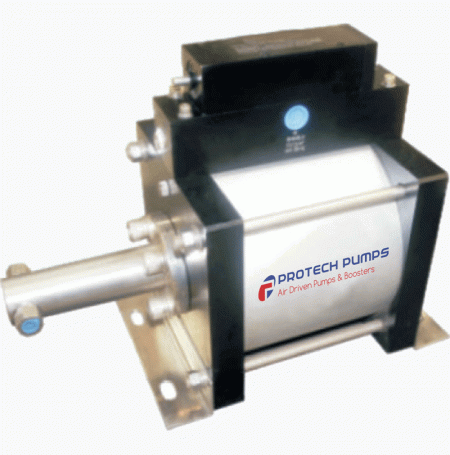

PROTECH PUMPS Air-Driven Liquid Pump, 250mm Double Acting, Single Air Drive

PROTECH PUMP Model: PH180

Key Specifications:

• Nominal ratio: 180:1
• Actual Pressure ratio: 190:1
• Displacement per cycle: 1.71 cu in / 27.99 cc
• Max outlet pressure: 22,866 psi / 1,577 BARG
• Connection size inlet/outlet: 3/8" NPT / HF6
• Availability: Normally stocked

Features:

• Stainless steel wet end materials of construction
• Specialized construction materials available
• Polyurethane pressure seals as standard
• UHMWPE, PTFE & other special seals available
• Separation & drainage between hydraulic & pneumatic seals
• No airline lubrication required
• Compact and lightweight
• Suitable for most hazardous areas
