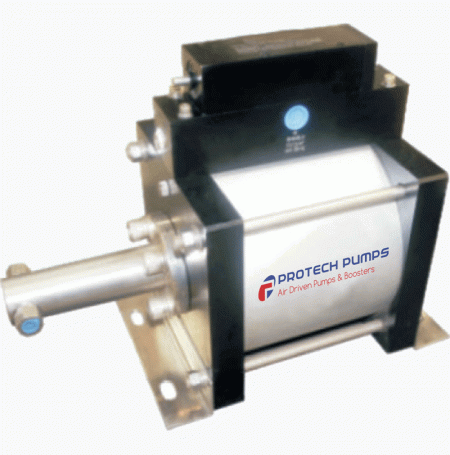

PROTECH PUMPS | PH150 Air-Driven Liquid Pump 18,777 psi

PROTECH PUMPS Air-Driven Liquid Pump, 250mm Double Acting, Single Air Drive

PROTECH PUMP Model: PH150

Key Specifications:

• Nominal ratio: 150:1
• Actual Pressure ratio: 156:1
• Displacement per cycle: 2.87 cu in / 47.12 cc
• Max outlet pressure: 18,777 psi / 1,295 BARG
• Connection size inlet/outlet: 1/2" NPT / HF6
• Availability: Normally stocked

Features:

• Stainless steel wet end materials of construction
• Specialized construction materials available
• Polyurethane pressure seals as standard
• UHMWPE, PTFE & other special seals available
• Separation & drainage between hydraulic & pneumatic seals
• No airline lubrication required
• Compact and lightweight
• Suitable for most hazardous areas
