HII | 5G-DS-75 Air-Driven Gas Booster, Double Acting, 30000 psi
Available on request
Request a quote
Part number: 5G-DS-75
This item is built or sourced to order. Send us the quantity and specs you need and our team will get you a firm quote and lead time — usually within one business day.
Request a quote
Prefer to talk it through? Contact our team.
- Trade & volume pricing for repeat orders
- Application support from our engineering team
- Fast turnaround on quotes and lead times

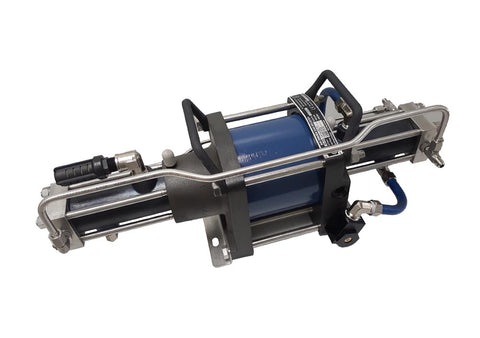

Hydraulics International Inc. Air-Driven Gas Booster, Double Acting, Single Drive (Single Stage)
HII Model: 5G-DS-75
| Approximate Stall Point: | Maximum Safe Pressure PSI (BAR) | Volume Displacement Per Cycle | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
Outlet | Inlet | IN3 (CM3) | |||||||
| (75 x Drive Air) + (1.00 x Gas Inlet) | 30000 (2068) | 30000 (2068) | 2.4 (39) | |||||||
Features:
- Separation between drive and gas section uses three
dynamic seals with dual vents.
- Air drive line lubrication not required.
- Rugged soft-seat, high-flow check valves in gas section(s).
- Only hydrocarbon-free stainless steel, bronze, PTFE and
Viton gas section internal parts exposed to gas flow.
- Heat of compression reduced for long seal life because cold
exhaust air surrounds gas barrel(s) inside cooling sleeve(s)
(see Figure 1, Item 4 above).
- Standard trim is weatherproof and suitable for offshore service.
-
