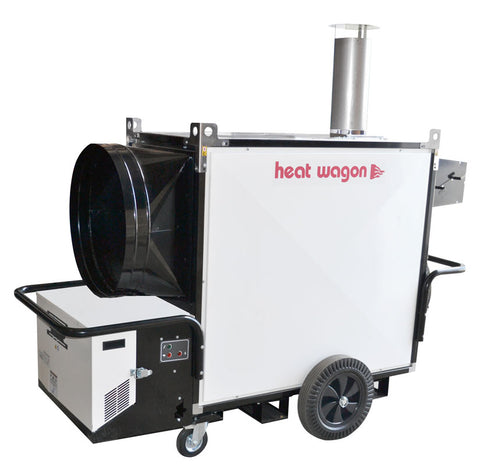

Heat Wagon | VG600A Indirect Gas-Fired Heater 600,000 BTU/hr
The Heat Wagon VG600A is rated at 600,000 BTU/hr on vapor propane or natural gas, moving 7,060 CFM. A sealed heat exchanger flues combustion outside, delivering clean, dry heat for enclosed and occupied spaces, drywall, painting and concrete curing.
- Output600KBTU/hr
- Airflow7,060CFM
- FuelDual Fuel
- Weight600lbs
01Features & Build
-
Features
- Switch from vapor propane to natural gas by turning one valve
- Swivel wheels included for easy maneuverability
- High efficiency combustion chamber (90%)
- Certified for inside or outside operation
- 3 modes of operation: Fan only (no heat) Heat control using remote thermostat with constant fan ventilation Heat control and fan ventilation that cycles on/off with thermostat
02Specifications16
| Brand | Heat Wagon |
|---|---|
| Model | VG600A |
| Category | Indirect Fired |
| Input | 600,000 BTU/hr |
| Fuel | Vapor propane / Natural gas |
| Fuel Consumption | 6.6 GPH vapor propane / 600 CFH natural gas |
| Gas Connection | 1″ FNPT |
| Electrical | 120 Volts, 15 Amp circuit |
| Fan | 7063 CFM, 0.6″ SP |
| Thermostat | Standard on/off |
| Temp Rise | 120°F @ 0°F ambient |
| Rated Efficiency | 90% |
| Dimensions | 80″L x 36″W x 56″H |
| Ductable | 24″-WD2425 (up to 75′ straight) |
| Approximate Weight | 600 lbs |
| Weight | 600 lbs. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Downloads2
04Shipping & Ordering
This item ships at approximately 600 lbs. It ships by freight, quoted to the delivery address; contact us for a lift-gate or residential delivery quote before you order.
Need ducting, a thermostat, a regulator or a fuel tank to go with it? See Heat Wagon OEM heater parts or call us and we’ll spec the complete setup with you.
