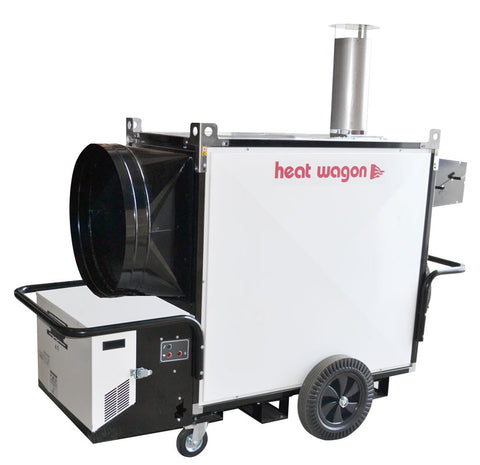

Heat Wagon | VF600A Indirect Fired Oil Heater 600,000 BTU/hr
The Heat Wagon VF600A is rated at 600,000 BTU/hr on diesel, kerosene or #1-2 fuel oil, moving 7,060 CFM. A sealed heat exchanger flues combustion outside, delivering clean, dry heat for enclosed and occupied spaces, drywall, painting and concrete curing.
- Output600KBTU/hr
- Airflow7,060CFM
- FuelOil
- Weight600lbs
01Features & Build
-
Features
- High efficiency combustion chamber (90%)
- Swivel wheels included for easy maneuverability
- Certified for inside or outside operation
- Preheated fuel filter for cold weather operation
- 3 modes of operation: fan only (no heat); heat control using remote thermostat with constant fan ventilation; heat and fan that cycle on/off with the thermostat
- Remote thermostat with 50 ft cord, flue stack and inlet recirculation adapter included
- Reliable Riello burner
02Specifications15
| Brand | Heat Wagon |
|---|---|
| Model | VF600A |
| Category | Indirect Fired |
| Input | 600,000 BTU/hr |
| Fuel | #1, #2 diesel, kerosene fuel oil |
| Fuel Consumption | 4.3 GPH |
| Electrical | 120V, 15 Amp circuit |
| Fan | 7063 CFM, 0.6″ SP |
| Thermostat | Standard on/off |
| Temp Rise | 120°F @ 0°F ambient |
| Rated Efficiency | 90% |
| Dimensions | 80″L x 36″W x 56″H |
| Duct Size | 24″-WD2425 (up to 75′ straight) |
| Approximate Weight | 600 lbs |
| Weight | 600 lbs. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Downloads2
04Shipping & Ordering
This item ships at approximately 600 lbs. It ships by freight, quoted to the delivery address; contact us for a lift-gate or residential delivery quote before you order.
Need ducting, a thermostat, a regulator or a fuel tank to go with it? See Heat Wagon OEM heater parts or call us and we’ll spec the complete setup with you.
