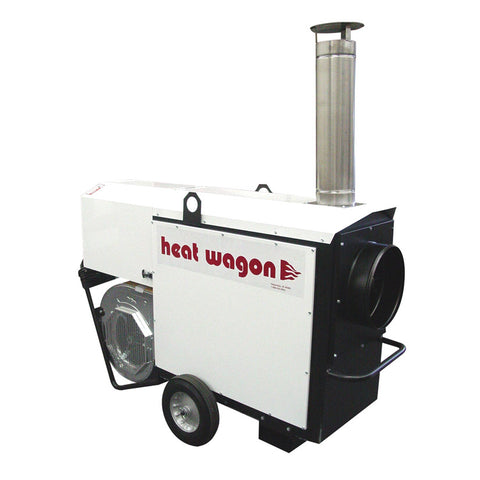

Heat Wagon | VF400 Indirect Fired Oil Heater 400,000 BTU/hr
The Heat Wagon VF400 is rated at 400,000 BTU/hr on diesel, kerosene or #1-2 fuel oil, moving 2,100 CFM. A sealed heat exchanger flues combustion outside, delivering clean, dry heat for enclosed and occupied spaces, drywall, painting and concrete curing.
- Output400KBTU/hr
- Airflow2,100CFM
- FuelOil
- Weight400lbs
01Features & Build
-
Features
- CSA approved
- 100% clean, dry heat
- Approved for indoor/outdoor applications
- Uses #1 or #2 diesel or kerosene
- Ductable to 50ft
- Standard remote thermostat with 15′ cord
- Compact design fits through standard doorway
- Large capacity fuel tanks (optional)
- In-line fuel circulation heater ensures smooth start-up (Tested to -20°F)
- 80% efficiency
02Specifications12
| Brand | Heat Wagon |
|---|---|
| Model | VF400 |
| Category | Indirect Fired |
| Input | up to 400,000 BTU/hr |
| Fuel | Fuel Oil |
| Fuel Consumption | 3.0 GPH max |
| Electrical | 120V, 20 amp |
| Fan | 2,100 CFM |
| Temperature Rise | 200 degrees |
| Weight | 400 lbs. empty |
| Ductable | up to 50′ |
| Dimensions | 60″ L 24″ W 45″ H |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Downloads2
04Shipping & Ordering
This item ships at approximately 400 lbs. It ships by freight, quoted to the delivery address; contact us for a lift-gate or residential delivery quote before you order.
Need ducting, a thermostat, a regulator or a fuel tank to go with it? See Heat Wagon OEM heater parts or call us and we’ll spec the complete setup with you.
