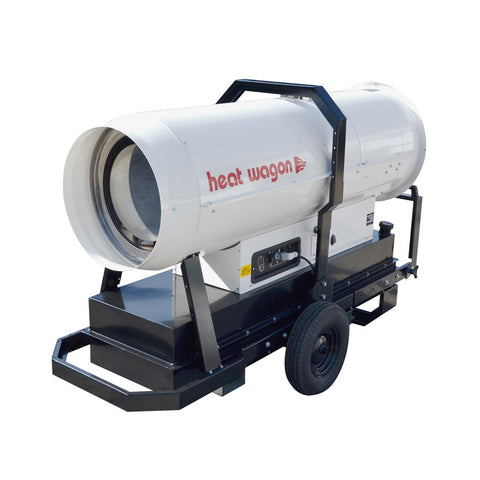

Heat Wagon | HVF410HD Indirect Fired Oil Heater 412,000 BTU/hr – high , 272,000 BTU/hr – low
The Heat Wagon HVF410HD is rated at 412,000 BTU/hr on diesel, kerosene or #1-2 fuel oil, moving 3,250 CFM. A sealed heat exchanger flues combustion outside, delivering clean, dry heat for enclosed and occupied spaces, drywall, painting and concrete curing.
- Output412KBTU/hr
- Airflow3,250CFM
- FuelOil
- Weight507lbs
01Features & Build
-
Features
- CSA approved
- Dual output controls High – 412,000 BTU,
- Low – 272,000 BTU
-
Features
- 30 hrs on low
- 20 hours on high
02Specifications14
| Brand | Heat Wagon |
|---|---|
| Model | HVF410HD |
| Category | Indirect Fired |
| Input | 412,000 BTU/hr – high / 272,000 BTU/hr – low |
| Fuel | Fuel Oil |
| Fuel Consumption | 2.89 GPH on high / 1.86 GPH on low |
| Fuel Capacity | 57 gallons |
| Run Time | 30hrs on low / 20 hrs on high |
| Electrical | 120V 20 amp |
| Fan | 3,250 CFM |
| Temperature Rise | 140 degrees – high / 105 degrees – low |
| Weight | 507 lbs. empty |
| Ductable | up to 50′ |
| Dimensions | 83″ L 33″ W 48″ H |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Downloads2
04Shipping & Ordering
This item ships at approximately 456 lbs. It ships by freight, quoted to the delivery address; contact us for a lift-gate or residential delivery quote before you order.
Need ducting, a thermostat, a regulator or a fuel tank to go with it? See Heat Wagon OEM heater parts or call us and we’ll spec the complete setup with you.
