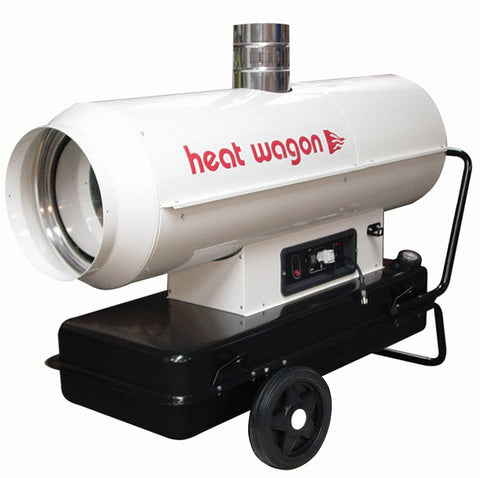

Heat Wagon | HVF310 Indirect Fired Oil Heater 300,000 BTU/hr
The Heat Wagon HVF310 is rated at 300,000 BTU/hr on diesel, kerosene or #1-2 fuel oil, moving 2,500 CFM. A sealed heat exchanger flues combustion outside, delivering clean, dry heat for enclosed and occupied spaces, drywall, painting and concrete curing.
- Output300KBTU/hr
- Airflow2,500CFM
- FuelOil
- Weight270lbs
01Features & Build
-
Features
- CSA approved
- High pressure operation
- Four-loop exhaust gas system™ for higher efficiency
- Output temperature 160ºF
- Extra large fuel tanks for extended run times
- Runs on #1 & #2 diesel, kerosene, JP-8 or Jet A
- Low power consumption-runs on 15 amp circuit
- Optional thermostat
- “One Man” maneuverability
02Specifications14
| Brand | Heat Wagon |
|---|---|
| Model | HVF310 |
| Category | Indirect Fired |
| Input | 300,000 BTU/hr |
| Fuel | Fuel Oil |
| Fuel Capacity | 35.7 gallons |
| Fuel Consumption | 2.28 GPH |
| Run Time | 16 hrs |
| Electrical | 120V |
| Fan | 2,500 CFM |
| Temperature Rise | 160 degrees |
| Weight | 270 lbs. empty |
| Ductable | up to 50′ |
| Dimensions | 69″ L 28″ W 38″ H |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Downloads2
04Shipping & Ordering
This item ships at approximately 297 lbs. It ships by freight, quoted to the delivery address; contact us for a lift-gate or residential delivery quote before you order.
Need ducting, a thermostat, a regulator or a fuel tank to go with it? See Heat Wagon OEM heater parts or call us and we’ll spec the complete setup with you.
