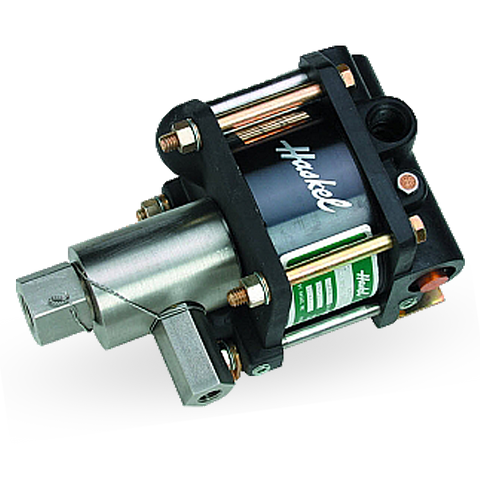

HASKEL 4B-30 | 0.75 HP | Air Driven Liquid Pump

HASKEL 4B-30 | 0.75 HP | Air Driven Liquid Pump

  • $1,641.00


.75 HP (.56 KW) Series Pump Model

  • 1" stroke .75 hp pump series (bottom inlet only)
  • Bottom inlet

Model Number: 4B-30

Nominal Ratio:  30

Technical Specifications:

Horsepower 0.75
Actual Ratio 34
Displacement (cu) 0.43
Displacement (ml) 7
Service Code 1 YES
Service Code 2 YES
Service Code 6 YES
Max Rated Continuous Output Pressure (psi) 3200
Max Rated Continuous Output Pressure (bar) 221
Max Rated Intermittent Output Pressure (psi) 3200
Max Rated Intermittent Output Pressure (bar) 221



Optional Modifications

Number | Description

56564 Extreme cycling service for drive section
56594 External air pilot
57639 Low air pressure drive
57960 Single acting drive
58475 1/8 NPT port on drive for recycle valve connection
59354 Noise reduction modification
59888 Cycle timer installed
80637 SAE outlet fitting for ratio 37 to 100
82104 Viton air drive
82500 ATEX Modification
86337 Ext. life air drive
C-14 Air Controls
