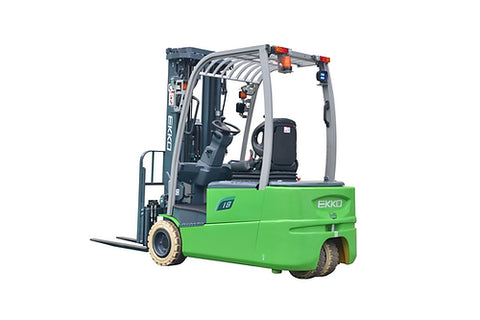

EKKO | EK18A-189LI Electric Forklift, 3-Wheel with Pneumatic Tires, Lithium Battery, 4,000 lbs, 189" Lift Height
SHIPS FREE - Domestic U.S. Only
EKKO 3-Wheel Electric Forklift w/Pneumatic Tires, Lithium Battery, 2 Hours Fast Charge
The EKKO EK18A-189LI Electric Forklift with Pneumatic Tires offers high-performing material handling, warehousing, and distribution capabilities.
EKKO
Model: EK18A-189LI
Features:
- Load Capacity 4000 lb
- Raised Height 189" (15.75ft)
- Side Shifting Forks
- Free Lift 46.5”
- Adjustable Forks
- Hydraulic Steering
- ZAPI controller
- Battery 80V/202Ah Lithium (included)
- Solid Pneumatic Tires
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- 3-Phase 480V Charger (optional 220V & 110V)
- 3 Year Limited Warranty
Specifications:
|
Model |
|
EK18A-189LI |
|
Power unit |
|
Lithium |
|
Operation Type |
|
Rider |
|
Loading capacity |
(LBS) |
4000 |
|
Load center |
(Inch) |
24 |
|
Axle center to fork face |
(Inch) |
14.6 |
|
Wheelbase |
(Inch) |
55.1 |
|
Service weight with battery |
LBS |
7341 |
|
Wheels type |
|
Solid Pneumatic |
|
Tire size front |
|
200/50-10 |
|
Tire size rear |
|
16x6-8 |
|
Wheels |
|
2×/2 |
|
Tread, front |
(Inch) |
36.5 |
|
Tread, back |
(Inch) |
9.8 |
|
Mast Tilt |
(°) |
3/5 |
|
Lowered mast height |
(Inch) |
86.2 |
|
Free lift height |
(Inch) |
46.5 |
|
Lift height |
(Inch) |
189 |
|
Height of overhead guard (cabin) |
(Inch) |
80.3 |
|
Height of seat |
(Inch) |
41.9 |
|
Overall length |
(Inch) |
116.9 |
|
Overall width |
(Inch) |
44.1 |
|
Ground clearance under mast |
(Inch) |
3.5 |
|
Min.Ground clearance |
(Inch) |
3.5 |
|
Min.Turning radius |
(Inch) |
65.9 |
|
Travel speed,laden/unladen |
(mph) |
10/10 |
|
Lifting speed, with/without load |
(fpm) |
78.7/118.1 |
|
Lowering speed, with/without load |
(fpm) |
114.2/98.4 |
|
Climbing ability, with/without load |
(%) |
22/30 |
|
Service brake |
|
Hydraulic |
|
Drive motor, 60-minute rating |
(hp) |
7.7x2 |
|
Lift motor rating at S3 15% |
(hp) |
18.8 |
|
Battery voltage/rated capacity |
(V/Ah) |
80/202 lithium |
|
Type of drive control |
|
MOSFET/AC |
