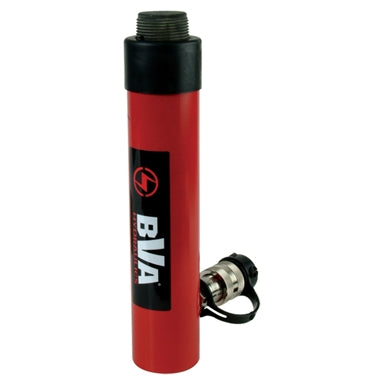

BVA | HT1006, 10 Ton 6" Stroke, Threaded Single Acting Cylinder
THREADED SINGLE ACTING CYLINDER
BVA Hydraulics
Model: HT1006
Features:
- Ideal for frame pulling machine
- High quality threaded single acting cylinders
- Spring return
- Removable threaded rod adapter allows for the use of a variety of threaded attachments
- Used to attach accessories to rod end and base
- Maximum working pressure: 10,000 psi / 700 bar
- Attached CH38F 3/8" high flow coupler
| Cylinder Capacity (tons) |
Stroke (in) |
Model Number |
Cylinder Effective Area (in²) |
Internal Pressure at Capacity (psi) |
Oil Capacity (in³) |
Weight (Lbs) |
| 10 | 5.96 | HT1006 | 2.24 | 8,928 | 13.33 | 10.6 |
Documents:
Threaded Single Acting Cylinders Spec Sheet
Parts/Owner's Manual
