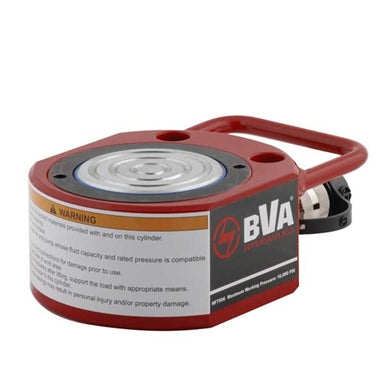

BVA | HF7506, 75 Ton 0.63" Stroke, Flat Body Single Acting Cylinder
FLAT BODY SINGLE ACTING CYLINDER
BVA Hydraulics
Model: HF5006
Features:
- Full compliance under ANSI B30.1 Standard
- Made of high quality steel
- Extremely short collapsed height can be used with applications having almost no clearance at the lift point
- Maximum working pressure: 10,000psi/700 bar
- Comes with ⅜" high flow coupler CH38F
| Cylinder Capacity (tons) |
Stroke (in) |
Model Number |
Cylinder Effective Area (in²) |
Internal Pressure at Capacity (psi) | Oil Capacity (in³) | Weight (Lbs) |
| 75 | 0.63 | HF7506 | 16.10 | 9,320 | 10.14 | 25.4 |
Documents:
Flat Body Single Acting Cylinders Spec Sheet
Parts/Owner's Manual
