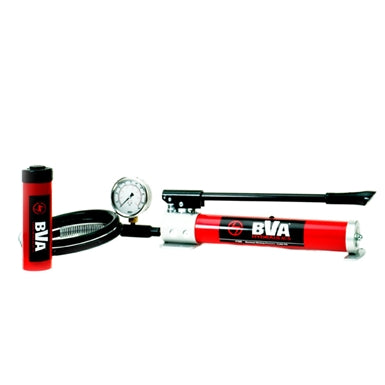

BVA | SP10-1504, 15 Ton 4" Stroke, General Purpose Hand Pump & Cylinder Set
GENERAL PURPOSE HAND PUMP & CYLINDER SET
BVA Hydraulics
Model: SP10-1504
Features:
- SP10-1504 combo set includes all components need to power connect and monitor system pressure. It includes
- P1000 - 2 Speed Hand Pump with 61 cu. in usable oil
- H1504 - 15 Ton, 4" Stroke cylinder
- CS3814 - 1/4" internal diameter with 3/8" NPTF, 6 Foot Hydraulic Hose
- CH38M - 3/8" high flow coupler
- GW2514 - 2-1/2" face diameter liquid gauge with 1/4" NPTF
- CF3814 - 1/4" NPTF Gauge Fitting
| Cylinder Capacity (tons) |
Cylinder Model Number |
Stroke (in) |
Collapsed Height |
Pump Model |
| 15 | H1504 | 3.98 | 7.87 | P1000 |
Documents:
Pump & Cylinder Sets Spec Sheet
