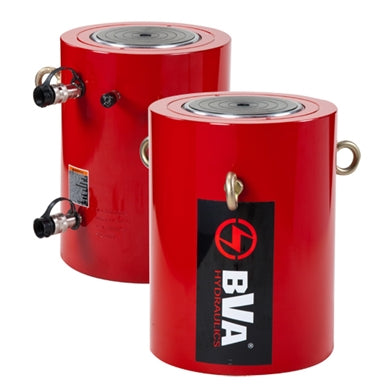

BVA | HDG30012, 300 Ton 11.81" Stroke, High Tonnage Double Acting Cylinder
HIGH TONNAGE DOUBLE ACTING CYLINDER
BVA Hydraulics
Model: HDG30012
Features:
- Cylinders are burnished rolled for a smooth precision mirror finish
- Industrial hard chrome plated ram prevents scratching and corrosion
- Base mounting holes standard on all models
- Rod wiper seals out dirt and contamination
- High strength steel construction from gun drilled solid bar
- High flow ⅜″ NPTF couplers
- Ideal for pushing and pulling
- Maximum working pressure: 10,000 psi / 700 bar
| Stroke (in) |
Model Number |
Max Cylinder Push / Pull |
Cylinder Effective Push / Pull |
Oil Capacity Push / Pull |
Weight (Lbs) |
|
| 11.81 |
|
353.60 / 117.00 | 70.71/ 23.46 | 835.11 / 277.10 | 668.0 |
Documents:
High Tonnage Double Acting Cylinders Spec Sheet
Parts/Owner's Manual (100 ton)
Parts/Owner's Manual (150 & 200 ton)
Parts/Owner's Manual (300, 400, & 500 ton)
Parts/Owner's Manual (600 ton)
