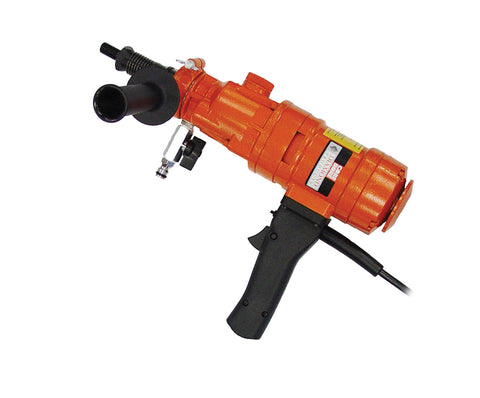

Diamond Products Weka DK12 Hand Held Drill Motor - Part # 4244017, Cat # 01738
This electric hand-held drill motor is designed for coring applications up to 3 inches in diameter. It features a three-speed gearbox and integrated leveling bubbles to ensure precise hole alignment.
- Bit Capacity3in
01Features & Build
-
Electric Powered
-
Operational Specifications
- Equipped with a thermal overload protection switch
- Includes a side handle to improve operator stability
- Features a water connection specifically for wet coring
- Spindle options include 5/8”-11 or 1.250”-7
- Three-speed transmission supports bits up to 3 inches handheld or 6 inches when mounted
- Integrated dual leveling bubbles for alignment accuracy
- Compatible with M-3 and M-4 drill stands
- Supplied with a plastic carrying case, side handle, 1/2” BSP male to 5/8-11 male adapter, and wrench
02Specifications9
| Brand | Diamond Products |
|---|---|
| Part Number | 4244017 |
| Catalog Number | 01738 |
| Engine/Motor Model | DK12 |
| Motor/Engine Power | 14 amp, 115 volt |
| Engine/Motor Make | Weka |
| Power Source | Electric |
| Drill Motor Max Bit Capacity | 6" (mounted) / 3" (hand-held) |
| Motor RPM | 580/1400/2900 |
Specifications are supplied by the manufacturer and are subject to change without notice.
