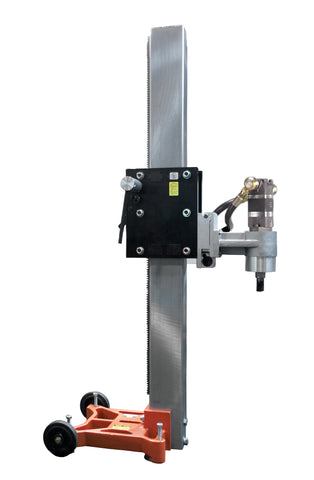

Diamond Products M-6 Large Drill Stand - Part # 4277581, Cat # 47879
This anchor-style drill stand is designed for use with hydraulic motors to support large-diameter coring operations. The unit features a 72-inch tall mast and a 2:1 gear reduction system for handling heavy bits.
- Bit Capacity18in
01Features & Build
-
Capacity and Construction
- Supports 18-inch bit capacity using standard pillow block.
- Optional 4-inch by 6-inch steel tube spacers allow for drilling holes up to 72 inches in diameter.
- Features a 15-inch by 12-inch heavy-duty roller carriage.
- Constructed with a 72-inch tall, 4-inch by 6-inch rectangular mast.
- Base consists of cast aluminum with an optional steel version available.
-
Operation and Mobility
- Equipped with 4-spoke handles for manual control.
- Includes a wheel kit, leveling bolts, and 6-inch rubber wheels on the base.
- Integrated 2:1 gear reduction assists in lifting larger bits.
- Sold as a stand-only unit to allow for custom system configuration.
02Specifications6
| Brand | Diamond Products |
|---|---|
| Model | M-6 |
| Part Number | 4277581 |
| Catalog Number | 47879 |
| Rig Type | Anchor rig |
| Power Source | Hydraulic |
Specifications are supplied by the manufacturer and are subject to change without notice.
