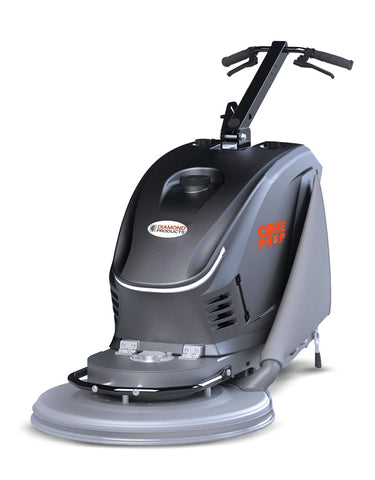

Diamond Products CPB725L Burnisher - Part # 5803364, Cat # 114368
This battery-powered burnisher maintains concrete and stone floors using variable pad speeds up to 1850 RPM. It features a heavy-duty steel deck and provides up to 34,000 square feet of productivity per hour.
- Power5HP
- Pad Speed1200-1850RPM
- Weight260lbs
01Features & Build
-
Operational Features
- Configurable with single or dual lithium batteries using quick-connect cables
- LCD digital display provides real-time operational data
- Ergonomic control grips designed for maneuverability
- DC brushless motor engineered for low vibration and noise
- Integrated automatic fast charger
- Industrial-gauge welded steel deck construction
- Steel lifting handle with oversized hardware
- Adjustable head pressure settings
- Sealed shroud with dust collection capability
- Quick-change pad driver system
02Specifications15
| Brand | Diamond Products |
|---|---|
| Model | CPB725L |
| Part Number | 5803364 |
| Catalog Number | 114368 |
| Power | 5 HP, 3750W, 72Volt |
| Battery Capacity (single) | 60 AH - 4.32 kWH |
| Battery Capacit (double) | 120 AH - 8.64 kWH |
| Runtime (single battery) | 2.0 Hrs |
| Runtime (double battery) | 4.0 Hrs |
| Productivity | up to 34,000 Sq Ft Per Hr |
| Pad Speed | 1200-1850 RPM variable |
| Sound Level | <63 dBa |
| Dimension | 29"W x 64"L x 42"H |
| Weight | 260 lbs. |
| Water Tank (optional) | 10 gallon |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Downloads2
04Shipping & Ordering
This item ships at approximately 260 lbs. Machines ship by freight, quoted to the delivery address; contact us for a lift-gate or residential delivery quote before you order.
