Diamond Products CC500MXL2 Masonry Saw Electric Baldor 3 HP, Single Phase, 230 volt - Part # 5800802, Cat # 03728
Part number: 5800802
This item is built or sourced to order. Send us the quantity and specs you need and our team will get you a firm quote and lead time — usually within one business day.
Request a quote
Prefer to talk it through? Contact our team.
- Trade & volume pricing for repeat orders
- Application support from our engineering team
- Fast turnaround on quotes and lead times

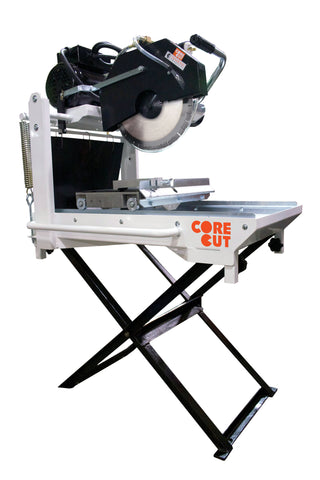

This masonry saw accommodates 14-inch blades for cutting brick, block, and stone. It is available in both gasoline and electric configurations to suit various job site power requirements.
- Max Depth5inches
- Blade Capacity14inches
01Features & Build
-
Gasoline and Electric
-
Gasoline and Electric
-
Operational Features
- Blade guard remains level during operation
- Removable cutting head for simplified transport

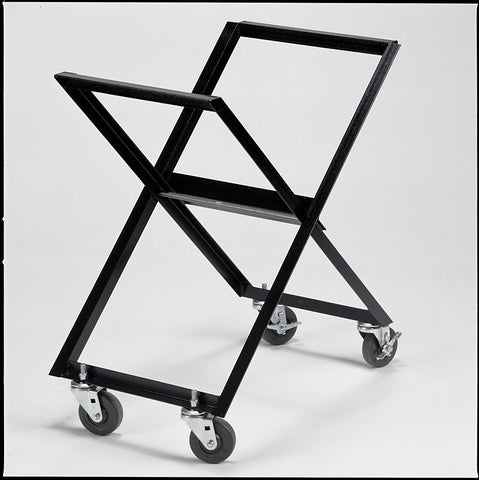

- Standard leg kit with optional folding stand

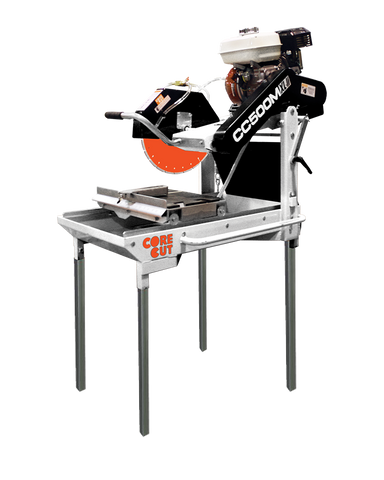

- Integrated side carrying handles
- Replaceable conveyor cart rails
- Includes water pump
- Vulcanized rubber coated material slide cart
- Open throat design for versatile cutting

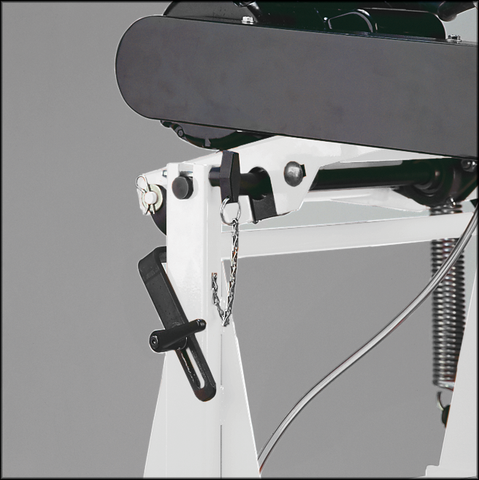

- Accessible depth control lock
- Open back design accommodates longer materials
- Heavy duty frame construction
- Reinforced slide rails for cart stability
- Simple design for maintenance access
- Sealed drain hole for tray clean up
02Specifications19
| Brand | Diamond Products |
|---|---|
| Model | CC500MXL2 |
| Part Number | 5800802 |
| Catalog Number | 03728 |
| Blade Capacity | 14” |
| Power Source | Electric |
| Engine/Motor Make | Baldor |
| Motor/Engine Power | 3 HP, Single Phase, 230 volt |
| Maximum Depth of Cut | 5” |
| Blade Shaft Diameter | 7/8” |
| Arbor Diameter | 1” |
| Blade Shaft Bearings | Flange block ball bearings |
| Blade Shaft Drive | 2 belt |
| Blade Mounting | Right (electric), Left (gas) |
| Blade Raise/Lower | Counterbalanced, spring tensioned head pivots on two 7/8” flange block bearings |
| Blade Coolant | Dual spray tubes, pump fed (electric models), pump from tray (gas models) |
| Air Filter | 3-stage cyclone (gas models) |
| Fuel Capacity | 1 gallon (gas models) |
| High Temp Shut-off | Included (electric models) |
Specifications are supplied by the manufacturer and are subject to change without notice.
