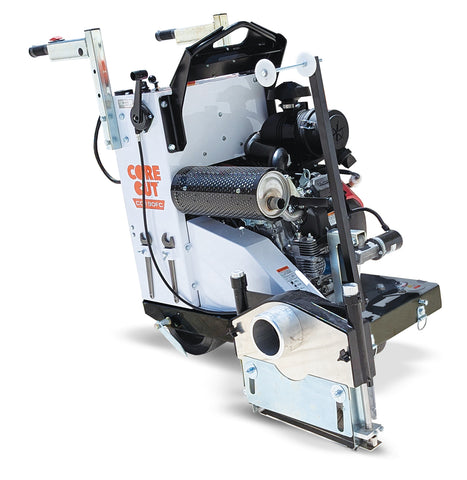

Diamond Products CC190FC First-Cut Saw - Part # 5801129, Cat # 111715

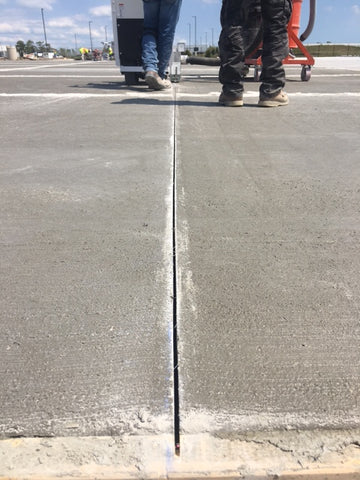

This early entry saw is designed for cutting control joints in green concrete immediately after finishing. It features a 14-inch blade capacity and a gasoline engine for job site mobility.
- Blade Capacity14in
- Weight460lbs
01Features & Build
-
Gasoline
-
Operational Specifications
- Maximum cutting depth of 3-1/2 inches using a 14-inch blade
- Accommodates blade thicknesses from .110 to .250 inches
- Self-propelled drive system with Eaton Model 7 transmission
- Adjustable handle bars with raise and lower functionality
- Up-cut blade rotation prevents debris from entering the cut
-
Maintenance and Transport
- Self-aligning blade shaft bearings
- Battery access includes a heavy-duty isolator switch to prevent power drain
- Integrated lifting hook for transport
- Includes electric start, low oil alert, and tach/hour meter
02Specifications15
| Brand | Diamond Products |
|---|---|
| Model | CC190FC |
| Part Number | 5801129 |
| Catalog Number | 111715 |
| Blade shaft RPM | 3,600 |
| Blade shaft diameter | 1-1/4” |
| Arbor Size | 1” with single drive pin |
| Blade raise/lower | Electric actuator |
| Transmission | Eaton Model 7 |
| Drive Speed | 0-80 feet per minute |
| Handle bars | Adjustable, raise/lower |
| Includes | Electric start, low oil alert and tach/hour meter |
| Sawing Engine/Motor Model | GX630 |
| Power Source | Gasoline |
| Blade Capacity | 14" |
Specifications are supplied by the manufacturer and are subject to change without notice.
