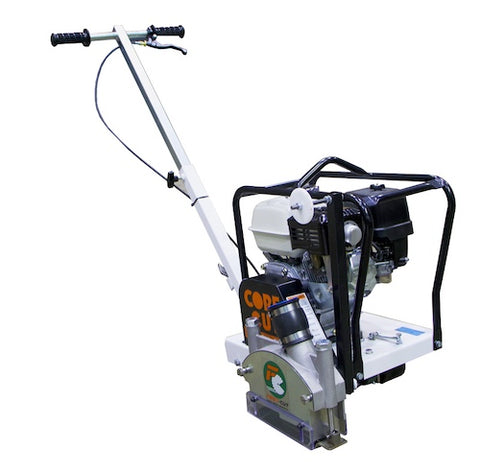

Diamond Products CC150XL-EE First-Cut Early Entry Saw CC148HXL-EE6 Honda GX160 Gasoline - Part # 5801345, Cat # 32739
This early entry saw is designed for green concrete cutting applications. It features a 6-1/2" blade capacity and is available in both gasoline and electric power configurations.
- Blade Capacity6-1/2in
- Max Cut Depth1-1/2in
- Blade RPM4020RPM
- Arbor Size1in
01Features & Build
-
Gasoline Powered. Electric Powered
-
Gasoline Powered. Electric Powered
-
Operational Features
- Skid plate system designed for green concrete cutting
- Spring-loaded skid plate maintains surface contact to minimize spalling
- Telescoping, fully adjustable handle bars for operator height and comfort
- Heavy-duty frame construction suitable for two-person lifting
- Five-wheel frame configuration for increased stability
- Cyclone air filter system for improved air flow
- Up-cut blade rotation prevents debris from entering the cut
- Spring-loaded blade raise and lower mechanism
- Single ribbed drive belt
- Includes vacuum attachment guard plate
02Specifications15
| Brand | Diamond Products |
|---|---|
| Model | CC148HXL-EE6 |
| Part Number | 5801345 |
| Catalog Number | 32739 |
| Series | CC150XL-EE First-Cut Saw |
| Model # | CC148HXL-EE6 |
| Engine Make/Model | Honda GX160 |
| Power | Gasoline |
| Product Weight (lbs.) | 100 |
| Maximum Depth of Cut | 1-1/2" with 6-1/2" diameter blade |
| Blade Shaft RPM | 4020 |
| Blade Shaft Diameter | 1-1/4" |
| Arbor Size | 1" |
| Depth Indicator | Standard |
| Dimensions | 16.94" wide, 21,80" tall, 32.92" long |
Specifications are supplied by the manufacturer and are subject to change without notice.
