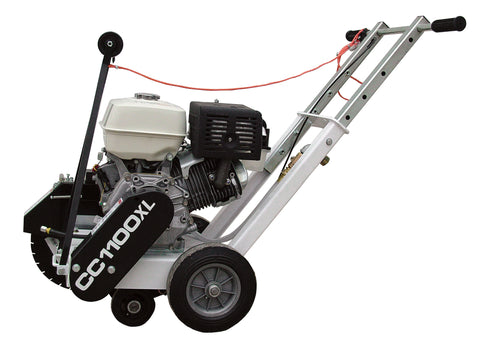

Diamond Products CC1100XL Joint Cutting Mini Saw Honda GX390-Downcut - Part # 5801015, Cat # 04648
This walk-behind saw is designed for joint cutting applications using a 14-inch blade. It features a gasoline-powered engine and provides a maximum cutting depth of 4-5/8 inches.
- Blade Capacity14inch
- Max Depth4-5/8inch
- Arbor Size1inch
- Shaft RPM2,650RPM
01Features & Build
-
Gasoline Powered
-
Operational Features
- Adjustable heavy-duty operator handles
- Push-drive design for maneuverability
- Configurable for upcut or downcut operation
- 1-inch arbor with drive pin
- Compact frame for transport
02Specifications13
| Brand | Diamond Products |
|---|---|
| Model | CC1100XL |
| Part Number | 5801015 |
| Catalog Number | 04648 |
| Blade Capacity | 14" |
| Power Source | Gas |
| Engine/Motor Make | Honda GX390-Downcut |
| Maximum depth of cut with 14" blade | 4-5/8” |
| Blade shaft RPM | 2,650 |
| Blade shaft diameter | 1” |
| Arbor Size | 1" |
| Front Wheels | 3” x 2” x 3/4” |
| Rear Wheels | 8” x 2” x 3/4” |
Specifications are supplied by the manufacturer and are subject to change without notice.
