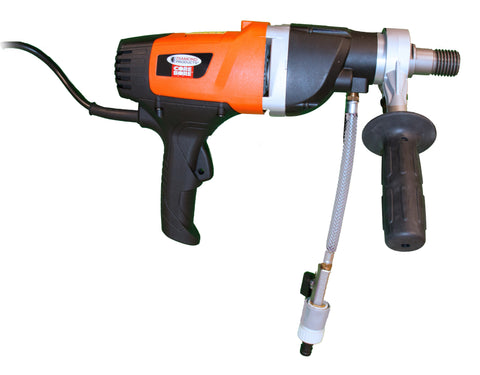

Diamond Products CB515 Hand Held Motor - Part # 4244128, Cat # 98794

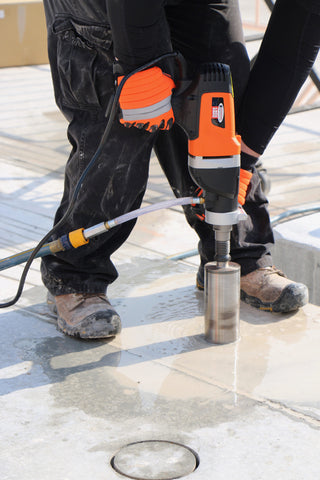

This electric motor is designed for wet core drilling applications. It supports bits up to 6 inches in diameter when mounted or 3 inches for hand-held operation.
- Power1800Watt
- Voltage115Volt
- Weight10.5lbs
01Features & Build
-
Electric - 1800 Watt, 115 Volt
-
Motor and Performance
- 1800 Watt, 115 volt electric motor

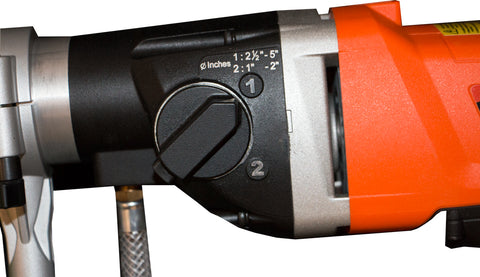

- Two-speed gearbox with 1400 rpm and 2300 rpm settings and integrated slip clutch
- Includes PRCD/GFCI Class I cord
-
Operation and Compatibility
- Side handle included for stability
- 1.250-7 threaded spindle with 5/8”-11 adapter
- Water hose connection for wet drilling
- Compatible with M-4 stands and hand-held motor mounts
- Integrated top bubble level

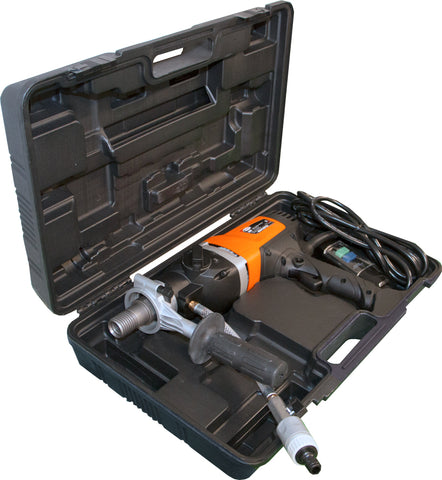

- Includes plastic carrying case, side handle, 5/8”-11 adapter, and wrench
02Specifications10
| Brand | Diamond Products |
|---|---|
| Model | CB515 |
| Part Number | 4244128 |
| Catalog Number | 98794 |
| Series | CB515 Hand Held Electric Drill Motor |
| Model # | CB515 |
| Engine/Motor Make | Core Bore |
| Power Source | Electric |
| Drill Motor Max Bit Capacity | 6" (mounted) / 3" (hand-held) |
| Speed | Two Speed |
Specifications are supplied by the manufacturer and are subject to change without notice.
