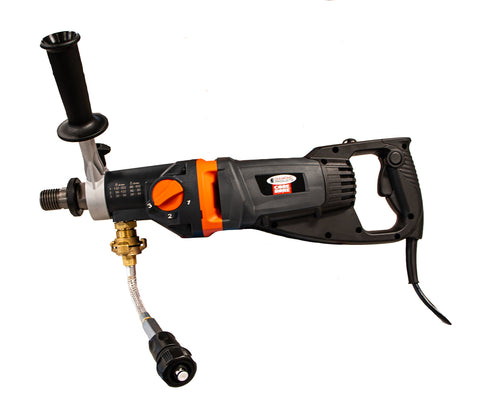

Diamond Products CB215 Hand-Held Motor - Part # 4244142, Cat # 108730
This electric drill motor is designed for coring applications in concrete and masonry. It supports bit diameters up to 3 inches for hand-held use and 6 inches when mounted to a rig.
- Bit Capacity3in
- Mounted Capacity6in
- Power1800Watt
- Voltage115Volt
- Weight13lbs
01Features & Build
-
OPERATIONAL SPECIFICATIONS
- Three-speed gearbox with settings at 1000, 1600, and 4450 RPM
- Integrated port switches between water feed for wet drilling and spindle dust collection for dry drilling
- D-handle design with a removable side handle for stability
- Compatible with M-3 and M-4 core rig stands
- LED load indicator for monitoring performance

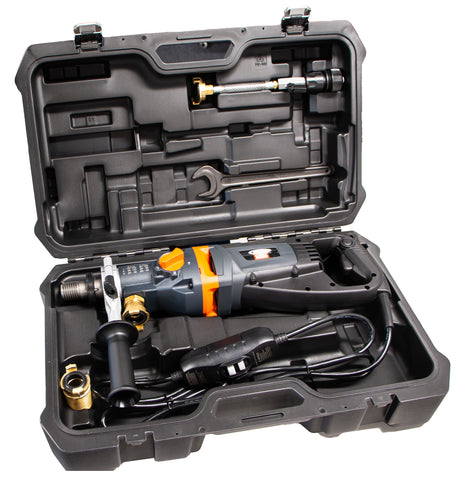

- Includes carrying case, vacuum adapter, water connection, and wrench
02Specifications6
| Brand | Diamond Products |
|---|---|
| Model | CB215 |
| Part Number | 4244142 |
| Catalog Number | 108730 |
| Power | 1800 Watt, 115 Volt, 15 Amp |
| Spindle | 1.250"-7 with 5/8"-11 adapter |
Specifications are supplied by the manufacturer and are subject to change without notice.
