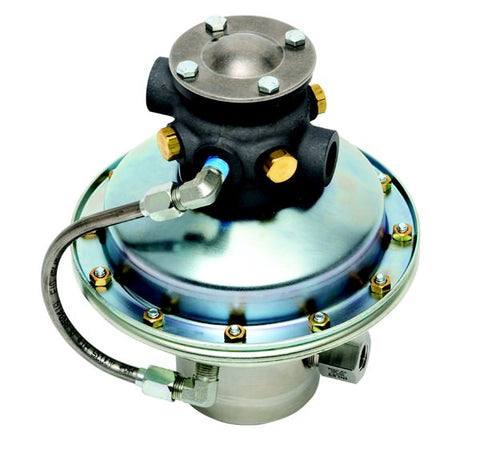

Sprague S-216-J Standard Air-Driven Pump

Sprague | S-216-JBN-200 Standard Air-Driven Pump, Non-Lubricated | Part No. 94198-200-11

  • $1,739.97


Teledyne Sprague, Air-Driven Pump

Model S-216-JBN-200

Part No. 94198-200-11

Features
  • Suitable for use in cleanrooms or laboratories.
  • Uses normal shop compressed air without lubrication to actuate the pump.
  • Dynamic air seals are self lubricating.
  • JB series pumps include a bushing for improved wear life.
  • JB series pumps use a wear resistant polyurethane piston seal to reduce maintenance frequency.
  • Wetted section components are stainless steel, compatible with most non-abrasive liquids.
  • Safe for use in hazardous areas.
  • Standard with Nitrile Seals.

Technical Specifications:

 Pump Model No. Part Number

Maximum Output

psi (bar)

 Port Threads

Driving Air, Inlet, Outlet

Actual Weight

lbs,-oz. (kg)

S-216-JBN-200 94198-200-11

24900

(1716)

1/2 NPT , NFB, HF4

12-8 (5.7)
