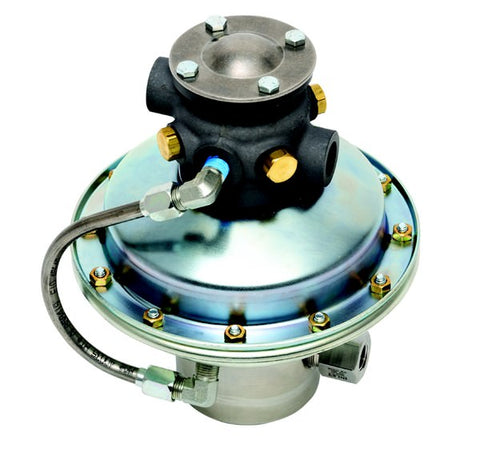

Sprague | S-216-J-100 Standard Air-Driven Pump, Lubricated | Part No. 77895-21

Teledyne Sprague, Air-Driven Pump

Model S-216-J-100

Part No. 77895-21

Features

General use air-driven pump services oil, water, and compatible chemicals.
Wetted section components are stainless steel, compatible with most non-abrasive liquids.
Safe for use in hazardous areas.
Standard with Nitrile Seals.

Alternate Seal Options : ( Email or Call )

FKM (VITON) ______ P/N : 77895-23

EPR ______________ P/N : 77895-24

Technical Specifications:

Pump Model No.

Part Number

Maximum Output

psi (bar)

Port Threads

Driving Air, Inlet, Outlet

Actual Weight

lbs,-oz. (kg)

S-216-J-100

77895-21

9100

(627)

1/2 NPT , NFC, NFC

12-8 (5.7)
