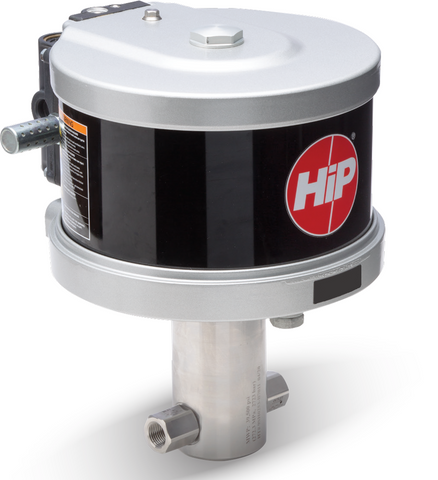

HiP | T7507 T-Series Air-Driven Pump | 7,400 PSI
HiP T7500 SERIES PUMP
Features- 6 in. air cylinder
- 2.5 inch pump stroke
- Inlet air pressure 15 psi - 100 psi (1 to 7 bar)
- Four different plunger seal materials; NBR , FKM , FFKM , EPR
- *80 CPM recommended for optimal pump seal life
Technical Specifications:
| Part Number | Ratio | Seal Material |
Max Working Pressure psi (Mpa, bar) |
Max Pneumatic Inlet Pressure psi (Mpa, bar)
|
Displacement per Stroke in3 (ml) |
| T7507-074-NBR-00 | 74:1 | NBR |
7400 (52, 520) |
100 (0.69, 6.9) | 1.49 (24.4) |
| T7507-074-FKM-00 | 74:1 | FKM |
7400 (52, 520) |
100 (0.69, 6.9) | 1.49 (24.4) |
| T7507-074-FFKM-00 | 74:1 | FFKM |
7400 (52, 520) |
100 (0.69, 6.9) | 1.49 (24.4) |
| T7507-074-EPR-00 | 74:1 | EPR |
7400 (52, 520) |
100 (0.69, 6.9) | 1.49 (24.4) |
