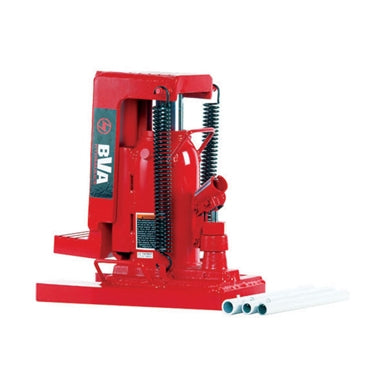

BVA | JBT10, 10 Ton, Magic Lift Toe Jack
MAGIC LIFT TOE JACK
BVA Hydraulics
Model: JBT10
--- Replaces discontinued model# J13200 ---
Features:
- Heat treated and chrome plated medium-carbon steel cylinder
- Chrome plated ram promotes longer seal life and optimum performance
- U.S.Patented Magic Lift Mechanism provides fast lift under no load operation
- U.S.Patented by-pass device protects hydraulic system from over traveling damage
- Good for rail road job site and applications of bridge construction.
|
Capacity (ton) |
Model Number |
Toe Saddle Height min/max (in) |
Head Saddle Height min/max (in) |
Hydraulic Lifting (in) |
Base Size (in) Length/width |
Weight (lbs) |
| 10 |
JBT10 |
1.1 / 6.3 | 11.0 / 16.1 | 5.1 | 11.6 x 9.0 | 84.0 |
