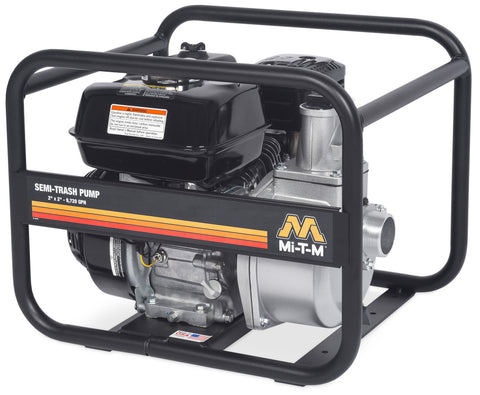

MI-T-M WTP-S02-1MGH Semi-Trash Pump 2-Inch
This semi-trash pump is designed for rapid water removal in construction and utility applications. It features a 196cc Honda GX200 OHV engine for reliable performance in demanding environments.
- Capacity9,720gph
- Head115ft.
- Engine196cc
- Weight65.00lbs.
01Features & Build
-
Frame
- Powder-coated steel wraparound frame construction
- Integrated rubber isolators to reduce operational vibration
-
Components
- Silicon carbide mechanical seal assembly
- Cast iron impeller and volute designed for wear resistance
- Die-cast aluminum pump housing for portability
02Specifications12
| Suction Discharge Size | 2 in.x2 in. |
|---|---|
| Max. Total Head | 115 ft. |
| Suction Lift | 28 ft. |
| Displacement/ Engine | 196cc Honda GX200 OHV |
| PSI | 50 |
| Max. Capacity | 9,720 gph |
| Fuel Tank Capacity | 0.83 gallon |
| Net Weight | 65.00 lbs. |
| Shipping Weight | 74.00 lbs. |
| Length | 20.50 in. |
| Width | 17.00 in. |
| Height | 16.25 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Warranty
- 3 YearHonda Engine
- 2 YearPump
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
04Documents & Downloads2
05Shipping & Ordering
This unit ships crated with a shipping weight of 74.00 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
