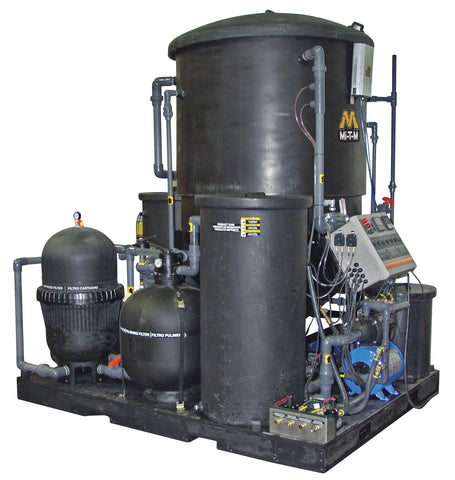

MI-T-M WCP-20-0M10 Clarifier Wash Water Recycle Systems
Part number: WCP-20-0M10
This item is built or sourced to order. Send us the quantity and specs you need and our team will get you a firm quote and lead time — usually within one business day.
Request a quote
Prefer to talk it through? Contact our team.
- Trade & volume pricing for repeat orders
- Application support from our engineering team
- Fast turnaround on quotes and lead times
This system is designed to remove free hydrocarbons and filter wash water for reuse. It is built for industrial facilities and fleet maintenance operations, featuring a corrosion-resistant polymer tank and plastic skid construction.
- Flow Rate20GPM
- Clarifier Tank600gallon
- Media Filter350lb.
- Ozone Output12grams/day
- Power230V
01Features & Build
-
System Components
- Cone-bottom tank design
- Corrosion-resistant base construction
- Corona discharge ozone generation
- Integrated oil, water, and solids separation
- Oil decanter assembly
- Sludge collection box
- Reusable multi-media, polyester, and activated carbon filtration
- ORP and pH monitoring controller
- 1.0 HP surface-mount sump pump
- ETL listed NEMA-4 corrosion-proof control panel
-
Operational Applications
- Rental yards and heavy equipment dealerships
- Trucking, forklift, and aircraft maintenance facilities
- Military bases and municipal DOT operations
- Diesel repair shops and engine manufacturing plants
- Shipyards and oil field service sites
-
Pit System Requirements
- Proper pit design is required to manage untreated wash water flow before it enters the recycle system.
02Specifications13
| Flow Rate | 0-20 GPM |
|---|---|
| Clarifier Tank | 600 gallon |
| Media Filter | 350 lb. |
| Cartridge Filter | 400 sq. ft. |
| Carbon Filter | 110 lb. |
| Oil Coalescing Area | 425 sq. ft. |
| Ozone Generator | 12 grams/day |
| Power Requirements | 230V, 1Ø, 30.0A |
| Net Weight | 0.00 lbs. |
| Shipping Weight | 2500.00 lbs. |
| Length | 72.00 in. |
| Width | 96.00 in. |
| Height | 108.00 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Optional Accessories2
- WX-0039Pinch Valve Assembly. Pinch valve, bladder style (used on cone bottom tanks), 2 inch, 120V, single phase
- WX-0133Coagulation System. Used in heavy solids applications to help dirt and solids settle for easy removal
Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.
04Documents & Downloads2
05Shipping & Ordering
This unit ships crated with a shipping weight of 2500 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
