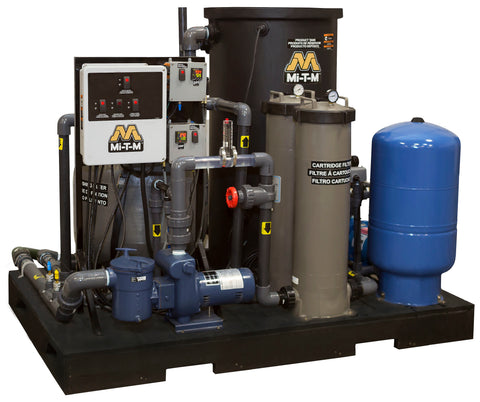

MI-T-M Recycle Systems - WTR WTR-10-0M10
Part number: WTR-10-0M10
This item is built or sourced to order. Send us the quantity and specs you need and our team will get you a firm quote and lead time — usually within one business day.
Request a quote
Prefer to talk it through? Contact our team.
- Trade & volume pricing for repeat orders
- Application support from our engineering team
- Fast turnaround on quotes and lead times
This compact water treatment system filters wash water for reuse or disposal in small wash bay setups. It is designed for facilities managing equipment runoff and features a dual-pump configuration for consistent flow.
- Flow Rate10GPM
- Filter Pump1.0HP
- Transfer Pump0.5HP
- Product Tank80gallon
- Pressure Tank20gallon
01Features & Build
-
System Components
- Non-corrosive poly skid construction
- Service-accessible pump layout
- Dual 30-micron cartridge filtration
- 110 lb. activated carbon filter
- 1.0 HP surface-mount sump pump
- ETL listed, NEMA-4 rated corrosion-proof control panel
-
Application Suitability
- Rental yards and heavy equipment dealers
- Trucking fleets and diesel repair facilities
- Military bases and aircraft maintenance
- Shipyards and municipal DOT operations
- Oil fields and engine manufacturing
-
Electrical Configurations
- WTR-10-0M10: 208-230V, 1-phase, 15.0A
- WTR-10-0M30: 208-230V, 3-phase, 8.0A
-
Pit System Requirements
- Proper pit design is required for effective wash water collection and initial treatment before processing.
02Specifications12
| Flow Rate | 0-10 GPM |
|---|---|
| Cartridge Filters | (2) 30-micron, 100 sq. ft. |
| Carbon Filter | 110 lb. |
| Filter Pump | 1.0 HP |
| Transfer Pump | 1/2 HP |
| Product Tank | 80 gallon |
| Pressure Tank | 20 gallon |
| Net Weight | 0.00 lbs. |
| Shipping Weight | 750.00 lbs. |
| Length | 72.00 in. |
| Width | 48.00 in. |
| Height | 60.00 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Optional Accessories4
- WX-0130pH Controller. For when pH adjustment is needed; 1.0A 48ml/minute chemical pump
- WX-0131ORP Controller. For when ORP adjustment is needed; 1.0A 48ml/minute chemical pump
- WX-0132460V Option. Upgrades 208-230V model to operate at 460V
- WX-0145pH and ORP Controller. For when both pH and ORP adjustment is needed; 1.0A, 48 ml/minute chemical pump
Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.
04Models & Part Numbers2
- WTR-10-0M10
- WTR-10-0M30
05Documents & Downloads2
06Shipping & Ordering
This unit ships crated with a shipping weight of 750 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
