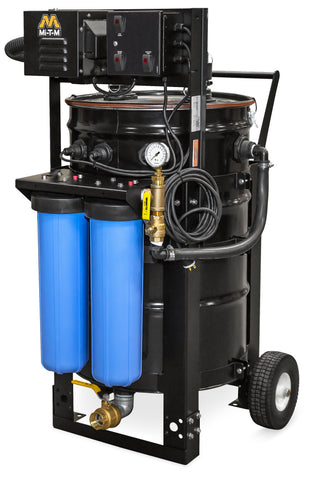

MI-T-M PWR-10-0ME1 Recovery & Recycle System
This portable system captures, filters, and recycles wash water for compliant disposal or reuse on job sites. It is designed for contractors requiring on-site water management, featuring a 55-gallon capacity tank for high-volume recovery.
- Tank Capacity55gallon
- Vacuum Motor1500W
- Filter Pump1/3HP
- Net Weight290.00lbs.
01Features & Build
-
System Components
- 1/3 HP transfer pump
- Oil-absorbing boom and stick
- Integrated vacuum tank drain
- 3-stage vacuum motor
- Stainless-steel suction head
- Cam lock hose fittings
- 50-foot vacuum hose
- 55-gallon tank capacity
- 6-inch by 20-foot water berm
- NEMA 5-20P plug configuration
02Specifications9
| Vacuum Motor | 3-stage, 1500W, 12.5A full load |
|---|---|
| Tank Capacity | 55 gallon |
| Filter Pump | 1/3 HP, 120V, 1Ø, 8.0A, 60Hz |
| Water Berm | 6 in. x 20 ft. |
| Net Weight | 290.00 lbs. |
| Shipping Weight | 340.00 lbs. |
| Length | 48.00 in. |
| Width | 42.00 in. |
| Height | 60.00 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Optional Accessories5
- TX-0010Adjustable Trailer Coupler Hitch. Replaces the standard 2-inch ball hitch with a 2-inch trailer hitch with pin-style fastener trailer coupler and hinged ball socket
- TX-0019Lunette Ring Hitch. Replaces the standard 2-inch ball hitch with an 3-inch integrated lunette ring for use with pintle hitches
- WX-0106Wheel Kit. Includes two flat-free tires with powder coated steel frame and handle
- WX-0109Dual Filters. Uses 10-micron bag #19-0249 and 50-micron bag #19-0267, includes 5 filter bags
- WX-0129Dual Filters. For PWR-10-0ME1 trailer-mount package
Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.
04Documents & Downloads2
05Shipping & Ordering
This unit ships crated with a shipping weight of 340.00 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
