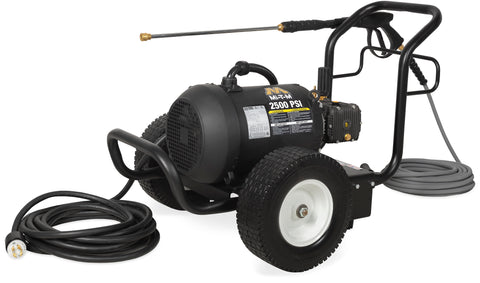

MI-T-M JP-2503-1ME3 JP Series Electric Direct Drive
This electric pressure washer is designed for indoor cleaning of floors, worktables, and equipment. It features a direct-drive pump configuration for consistent performance in industrial environments.
- Pressure2500psi
- Flow3.2gpm
- Motor6.0HP
- Net Weight225.00lbs.
01Features & Build
-
Pump
- Adjustable pressure unloader valve
- Forged brass manifold construction
- Thermal and safety relief valves
- Integrated low-pressure detergent injection system
-
Motor
- Totally enclosed fan-cooled (TEFC) electric motor
- 35-foot power cord
- ETL certified for US and Canada
- NEMA L15-20P plug type
-
Frame
- Powder-coated steel chassis
- 13-inch flat-free tires
02Specifications10
| PSI | 2500 |
|---|---|
| GPM | 3.2 |
| Horsepower/Motor | 6.0 HP, 230V, 3Ø, 17.3A -OR- 6.0 HP, 460V, 3Ø, 8.7A |
| Pump | AR |
| Plug Type | NEMA L15-20P |
| Net Weight | 225.00 lbs. |
| Shipping Weight | 275.00 lbs. |
| Length | 44.00 in. |
| Width | 26.00 in. |
| Height | 27.00 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03What’s Included3
- Quick connect nozzles - 0°, 15°, 25° and detergent nozzle
- 50-foot x 3/8-inch non-marking hose
- 36-inch lance with insulated trigger gun
04Optional Accessories1
- CX-0066460V on 6.0 HP, 3 Phase Models. For when you have 460V of power available
Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.
05Warranty
- 7 YearAR Pump
- 1 YearElectric Motor
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
06Documents & Downloads2
07Shipping & Ordering
This unit ships crated with a shipping weight of 275.00 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
