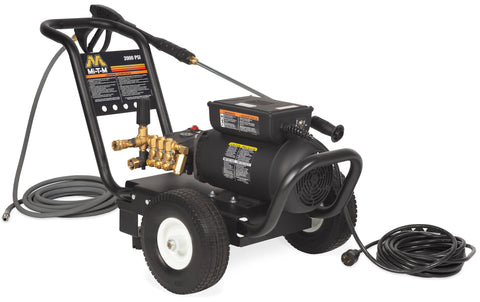

MI-T-M JP-2003-3ME1 JP Series Electric Direct Drive
This electric direct drive unit is designed for indoor cleaning of floors, worktables, and equipment. It features a heavy-duty 4.0 HP motor for consistent performance in commercial environments.
- Pressure2000psi
- Flow2.6gpm
- Motor4.0HP
- Net Weight112.00lbs.
01Features & Build
-
Pump
- Adjustable pressure unloader valve
- Forged brass manifold construction
- Integrated thermal and safety relief valves
- Low-pressure detergent injection system
-
Motor
- Totally enclosed fan-cooled electric motor
- 35-foot power cord equipped with GFCI
- ETL certified for US and Canada
- NEMA 6-20P plug configuration
-
Frame
- Powder-coated steel chassis
- 10-inch flat-free tires
02Specifications10
| PSI | 2000 |
|---|---|
| GPM | 2.6 |
| Horsepower/Motor | 4.0 HP, 230V, 1Ø, 16.7A |
| Pump | AR |
| Plug Type | NEMA 6-20P |
| Net Weight | 112.00 lbs. |
| Shipping Weight | 162.00 lbs. |
| Length | 37.00 in. |
| Width | 21.00 in. |
| Height | 24.50 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03What’s Included3
- High/low pressure nozzle
- 25-foot x 3/8-inch non-marking hose
- 36-inch lance with insulated trigger gun
04Optional Accessories1
- CX-0030High Pressure Hose - 50-Foot. For when you need extra hose for added mobility
Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.
05Warranty
- 7 YearAR Pump
- 1 YearElectric Motor
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
06Documents & Downloads2
07Shipping & Ordering
This unit ships fully assembled with a shipping weight of 162.00 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
