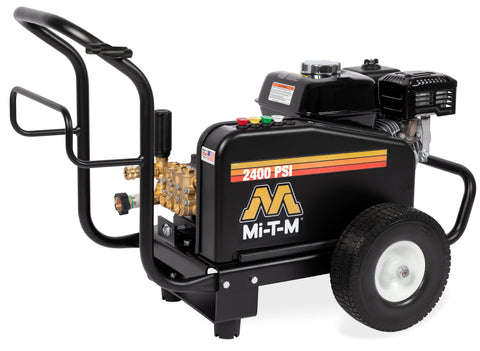

MI-T-M JCW-2403-0MHB JCW Series Gasoline Belt Drive
This belt drive unit is engineered for industrial cleaning tasks on agricultural, construction, and commercial jobsites. It features a heavy-duty belt drive system designed to reduce pump vibration and heat buildup.
- Pressure2400psi
- Flow2.8gpm
- Engine196cc
- Net Weight178.00lbs
01Features & Build
-
Pump
- Forged brass manifold construction
- Integrated thermal relief valve
- Water filter with clear inspection sleeve
- ETL certified for US safety standards
-
Frame
- Powder-coated steel chassis
- Two-piece belt guard assembly
- 10-inch flat-free tires
02Specifications11
| PSI | 2400 |
|---|---|
| GPM | 2.8 |
| Displacement/ Engine | 196cc Honda GX200 OHV |
| Pump | AR |
| Unloader | Adjustable Pressure |
| Lance | 36 in. |
| Net Weight | 178.00 lbs. |
| Shipping Weight | 232.00 lbs. |
| Length | 39.50 in. |
| Width | 28.50 in. |
| Height | 26.00 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03What’s Included3
- Quick connect nozzles - 0º, 15º, 25º and 40º
- 50-foot x 3/8-inch non-marking hose
- Insulated trigger gun
04Optional Accessories1
- CX-0005Insulated Dual Lance. Has both a high and low pressure top that allows you to switch to the low pressure chemical injector without having to change tips - 36-inch
Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.
05Warranty
- 7 YearAR Pump
- 3 YearHonda Engine
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
06Documents & Downloads2
07Shipping & Ordering
This unit ships fully assembled with a shipping weight of 232.00 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
