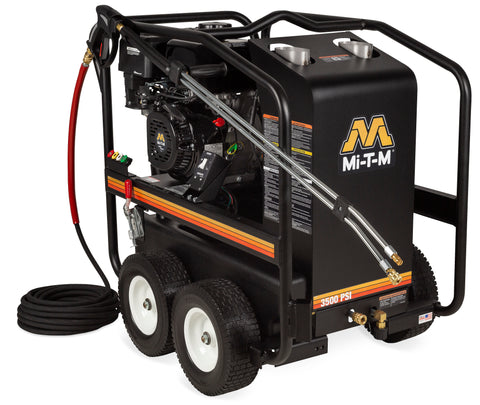

MI-T-M HSP-3504-3MGM HSP Series Gasoline Direct Drive
This hot water pressure washer removes grease and oil from heavy equipment and shop floors using an integrated Electro Magnetic Firing system. It is designed for professional contractors requiring high-temperature cleaning power backed by a 420cc OHV engine.
- Pressure3500psi
- Flow3.3gpm
- Engine420cc
- Net Weight428.00lbs
01Features & Build
-
Pump
- External bypass system prevents heat accumulation
- Stainless-steel and brass unloader valve factory-set
- Forged brass manifold construction
- Integrated thermal relief valve
- Low-pressure chemical injection system
-
Frame
- Powder-coated steel chassis with center-balanced lifting point
- 13-inch flat-free tires
-
Components
- Top-fired powder-coated heat exchanger
- Burner compatible with No. 1 or No. 2 diesel or kerosene; not approved for bio-fuel
- ETL certified for US and Canada
-
Miscellaneous
- Temperature rise of 150°F/66°C above ambient with 200°F maximum outlet temperature
02Specifications13
| PSI | 3500 |
|---|---|
| GPM | 3.3 |
| Displacement/ Engine | 420cc Mi-T-M OHV |
| Pump | AR |
| Engine Fuel Tank Capacity | 1.72 gallon |
| Burner Fuel Tank Capacity | 5.5 gallon |
| Burner Fuel Cons. | 2.14 gph |
| BTU Per Hour | 294,000 |
| Net Weight | 428.00 lbs. |
| Shipping Weight | 551.00 lbs. |
| Length | 43.00 in. |
| Width | 30.00 in. |
| Height | 41.00 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03What’s Included3
- Quick connect nozzles - 0°, 15°, 25° and 40°
- 50-foot x 3/8-inch steel wire-braided hose
- Adjustable pressure insulated dual lance with trigger gun
04Optional Accessories6
- HX-0274Rain Cap. Protects boiler from moisture build-up when unit is left outside
- HX-0279Hour Meter. Displays the number of hours unit has been in operation
- HX-0280Adjustable Thermostat. Operator is able to adjust outlet water temperature between 98°-248°F
- HX-0281Hour Meter / Adjustable Thermostat. Displays the number of hours unit has been in operation and also the operator is able to adjust outlet water temperature between 98°-248°F
- HX-0300Skid Feet. Stationary applications
- HX-0301Electric Start - Sealed Battery Included. For easy starting
Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.
05Warranty
- 7 YearAR Pump
- 3 YearCoil
- 3 YearMi-T-M Engine
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
06Documents & Downloads2
07Shipping & Ordering
This unit ships crated with a shipping weight of 551.00 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
