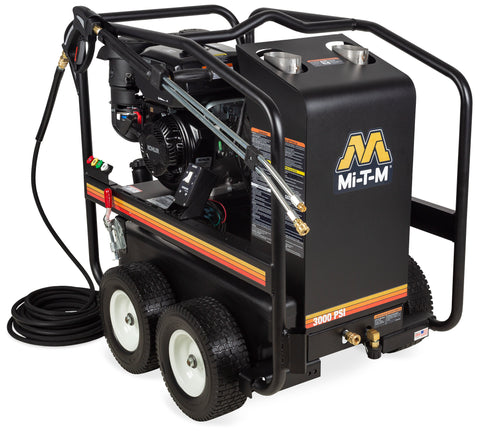

MI-T-M HSP-3003-3MGK HSP Series Gasoline Direct Drive

• Pump

  • External bypass system prevents heat accumulation
  • Stainless-steel and brass unloader valve factory preset
  • Forged brass manifold construction
  • Integrated thermal relief valve
  • Low-pressure chemical injection system

• Frame

  • Powder-coated steel chassis with center-balanced lifting point
  • 13-inch flat-free tires

• Components

  • Top-fired powder-coated heat exchanger
  • Burner compatible with No. 1 or No. 2 diesel or kerosene; not approved for bio-fuel
  • ETL certified for US and Canada

• Miscellaneous

  • Temperature rise of 150°F/66°C above ambient with 200°F maximum outlet temperature

Specifications are supplied by the manufacturer and are subject to change without notice.

• Quick connect nozzles - 0°, 15°, 25° and 40°
• 50-foot x 3/8-inch steel wire-braided hose
• Adjustable pressure insulated dual lance with trigger gun

• HX-0274Rain Cap. Protects boiler from moisture build-up when unit is left outside
• HX-0279Hour Meter. Displays the number of hours unit has been in operation
• HX-0280Adjustable Thermostat. Operator is able to adjust outlet water temperature between 98°-248°F
• HX-0281Hour Meter / Adjustable Thermostat. Displays the number of hours unit has been in operation and also the operator is able to adjust outlet water temperature between 98°-248°F
• HX-0300Skid Feet. Stationary applications

Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.

• 7 YearAR Pump
• 3 YearCoil
• 3 YearRehlko Engine

Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.

• Product Sheet (PDF)
• Product Manual (PDF)
