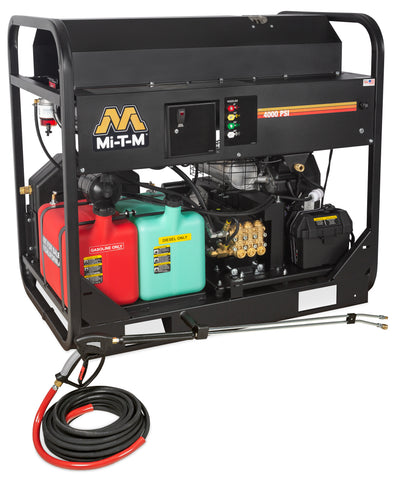

MI-T-M HS-4004-1MAK HS Series Gasoline Belt Drive

• Pump

  • External bypass system prevents heat accumulation
  • Factory-preset unloader
  • Forged brass manifold construction
  • 80-mesh stainless-steel inlet water strainer

• Engine

  • Electric start system with included sealed battery

• Frame

  • Powder-coated heavy-duty steel chassis

• Components

  • Integrated 2900-watt generator
  • Dual cogged belt drive assembly
  • Burner compatible with No. 1 or No. 2 diesel or kerosene; not approved for bio-fuel
  • 1/2-inch schedule 80 coil with stainless-steel wrap
  • CSA certified for US and Canada

• Miscellaneous

  • Maximum temperature rise of 150°F/66°C above ambient with 200°F maximum outlet temperature

Specifications are supplied by the manufacturer and are subject to change without notice.

• Quick connect nozzles – 0°, 15°, 25° and 40°
• 50-foot x 3/8-inch steel wire-braided hose
• Adjustable pressure insulated dual lance with trigger gun

• HX-0130Three-way Ball Valve. Allows pressure washer to be operated from garden hose/float tank or trailer supply tank by adjusting ball valve lever. Cannot be ordered with HX-0285 steel diesel fuel tank.
• HX-0142Steam Combination 250°F. Increases outlet temperature to 250°F
• HX-0145Adjustable Thermostat. Operator is able to adjust outlet water temperature between 86°F-248°F
• HX-0147Four Point Lifting Capability. Allows unit to be lifted by crane
• HX-0148Adjustable Detergent Valve. Supplies soap injection through the high pressure pump while spraying; pressure washers with trapping unloader only **Requires trapping unloader. Consult factory before ordering this option.**

Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.

• 7 YearAR Pump
• 3 YearCoil
• 3 YearRehlko Engine

Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.

• Product Sheet (PDF)
• Product Manual (PDF)
