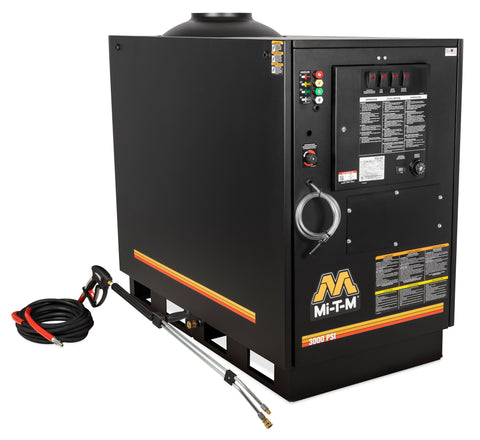

MI-T-M HG-3005-3230G1 HG Series Natural Gas/LP Belt Drive
Part number: HG-3005-3230G1
This item is built or sourced to order. Send us the quantity and specs you need and our team will get you a firm quote and lead time — usually within one business day.
Request a quote
Prefer to talk it through? Contact our team.
- Trade & volume pricing for repeat orders
- Application support from our engineering team
- Fast turnaround on quotes and lead times
This stationary pressure washer utilizes a continuous fuel supply for consistent performance in dedicated wash bays. It is designed for high-volume industrial cleaning and features a heavy-duty belt-drive pump assembly.
- Pressure3000psi
- Flow4.8gpm
- Motor10.0HP
- Net Weight758.00lbs
01Features & Build
-
Pump and Motor
- General pump configuration
- 10.0 HP, 230V, 3Ø, 25.0A motor
- ETL certified for US and Canada
-
Heating System
- 338,000 BTU per hour input for natural gas
- 326,000 BTU per hour input for LP gas
- 10 in. draft diverter
-
Dimensions
- 56.50 in. length
- 29.00 in. width
- 49.75 in. height
02Specifications12
| PSI | 3000 |
|---|---|
| GPM | 4.8 |
| Horsepower/Motor | 10.0 HP, 230V, 3Ø, 25.0A |
| Pump | General |
| Natural Gas BTU Per Hour | 338,000 |
| LP Gas BTU Per Hour | 326,000 |
| Draft Diverter | 10 in. |
| Net Weight | 758.00 lbs. |
| Shipping Weight | 878.00 lbs. |
| Length | 56.50 in. |
| Width | 29.00 in. |
| Height | 49.75 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03Optional Accessories10
- HX-0105Liquid Propane - Vapor Only. Converts natural gas pressure washer to operate on liquid propane (vapor only)
- HX-0305Additional Programmable Logic Controller Remotes, Plastic Control Box. Adds additional remotes to PLC
- HX-0306Additional Programmable Logic Controller Remotes, Metal Control Box. Adds additional remotes to PLC
- HX-0114Dual gun. Two guns may be sprayed at the same time, flow is divided between the two guns while each operator maintains equal system pressure
- HX-0122250°F Steam. Increases outlet temperature to 250°F while lowering system pressure; adds re-sized 25° nozzle to be used as steam nozzle
- HX-0314First Remote, plastic control box. Includes junction box and (1) control box with pump, heat and detergent switches
- HX-0315First Remote, metal control box. Includes junction box and (1) control box with pump, heat and detergent switches
- HX-0316Wireless Remote. Includes receiver and (1) transmitter with pump, heat and detergent buttons
- HX-0317Additional Wireless Remote. Includes pump, heat and detergent buttons
- HX-0321Detergent Solenoid. Adds solenoid and switch to easily control the chemical injection
Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.
04Warranty
- 7 YearGeneral Pump
- 3 YearCoil
- 1 YearElectric Motor
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
05Documents & Downloads2
06Shipping & Ordering
This unit ships crated with a shipping weight of 878.00 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
