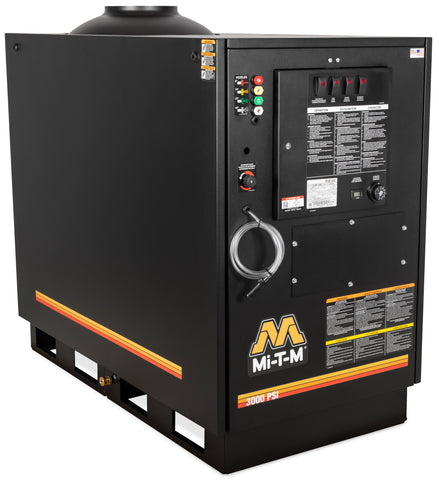

MI-T-M HG-3004-1208G1 HG Series Natural Gas/LP Belt Drive

• Pump

  • Triplex piston pump with ceramic plungers and belt drive configuration
  • Unloader valve preset at the factory

• Motor

  • Electric motor with open drip-proof enclosure

• Frame

  • Steel frame finished with powder coating

• Components

  • Heat exchanger featuring 1/2-inch schedule 80 pipe coil
  • 4-gallon polyethylene float tank equipped with inlet filter screen
  • Natural gas or LP vapor-fired burner with 10-inch stack
  • 10-inch draft diverter
  • Thermal relief valve for system protection
  • Electronic ignition system with standing pilot
  • Safety controls including pressure switch and over-pressure protection
  • 24V control system
  • PLC-based auto start/stop with timed lockout functionality
  • Adjustable high-pressure detergent injection
  • Adjustable thermostat and integrated hour meter
  • ETL certified for US and Canada

• Miscellaneous

  • Maximum temperature rise of 150°F/66°C above ambient, with a maximum outlet temperature of 200°F (up to 250°F/121°C with steam option)

Specifications are supplied by the manufacturer and are subject to change without notice.

• Quick connect nozzles – 0°, 15°, 25°, 40° and fixed detergent nozzle
• 50-foot x 3⁄8-inch steel wire-braided high pressure hose with quick connects
• Adjustable pressure insulated dual lance with trigger gun

• HX-0105Liquid Propane - Vapor Only. Converts natural gas pressure washer to operate on liquid propane (vapor only)
• HX-0121250°F Steam Upgrade. Steam option adjusts unloader valve counter-clockwise increasing outlet temperature to 250°F while lowering system pressure
• HX-0305Additional Programmable Logic Controller Remotes, Plastic Control Box. Adds additional remotes to PLC
• HX-0306Additional Programmable Logic Controller Remotes, Metal Control Box. Adds additional remotes to PLC
• HX-0314First Remote, plastic control box. Includes junction box and (1) control box with pump, heat and detergent switches
• HX-0315First Remote, metal control box. Includes junction box and (1) control box with pump, heat and detergent switches
• HX-0316Wireless Remote. Includes receiver and (1) transmitter with pump, heat and detergent buttons
• HX-0317Additional Wireless Remote. Includes pump, heat and detergent buttons
• HX-0321Detergent Solenoid. Adds solenoid and switch to easily control the chemical injection

Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.

• 1 YearElectric Motor

Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
