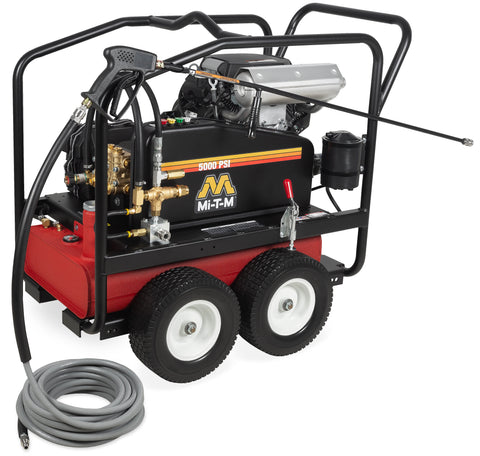

MI-T-M CWC-5004-4MAM CWC Premium Series Gasoline Belt Drive
This belt-drive pressure washer is designed for heavy-duty industrial cleaning applications. It features a reinforced roll cage frame for durability on active jobsites.
- Pressure5000psi
- Flow4.0gpm
- Engine670cc
- Net Weight433.00lbs
01Features & Build
-
Pump
- External bypass system prevents heat accumulation
- Forged brass manifold construction
- Integrated thermal and safety relief valves
- Water filter includes clear sleeve for visual screen inspection
-
Engine
- Electric start system with sealed battery included
-
Frame
- Powder-coated steel roll cage with integrated lifting hook
- Two-piece belt guard assembly
- 13-inch flat-free tires equipped with locking brake
-
Components
- Fuel tank features powder-coated exterior and aluminized steel interior to inhibit rust
- 13-gallon fuel capacity provides 9.5 hours of run time
02Specifications11
| PSI | 5000 |
|---|---|
| GPM | 4.0 |
| Displacement/ Engine | 670cc Mi-T-M OHV |
| Pump | AR |
| Unloader | Factory Preset |
| Lance | 48 in. |
| Net Weight | 433.00 lbs. |
| Shipping Weight | 499.00 lbs. |
| Length | 43.00 in. |
| Width | 27.75 in. |
| Height | 38.50 in. |
Specifications are supplied by the manufacturer and are subject to change without notice.
03What’s Included3
- Quick connect nozzles - 0º, 15º, 25º and 40º
- 50-foot x 3/8-inch non-marking hose
- Insulated trigger gun
04Optional Accessories1
- CX-0118Skid Feet. Stationary applications
Factory-installed options — these must be ordered together with the machine and cannot be added after the unit ships. Contact us before checkout to add them to your build.
05Warranty
- 7 YearAR Pump
- 3 YearMi-T-M Engine
Warranty is provided by the manufacturer and begins at the date of purchase. Registration may be required — see the product manual for full terms and exclusions.
06Documents & Downloads2
07Shipping & Ordering
This unit ships crated with a shipping weight of 499.00 lbs. Freight is quoted to the delivery address.
Need a volume price, a fleet configuration, or help matching this machine to your application? Call us and we’ll spec it with you.
